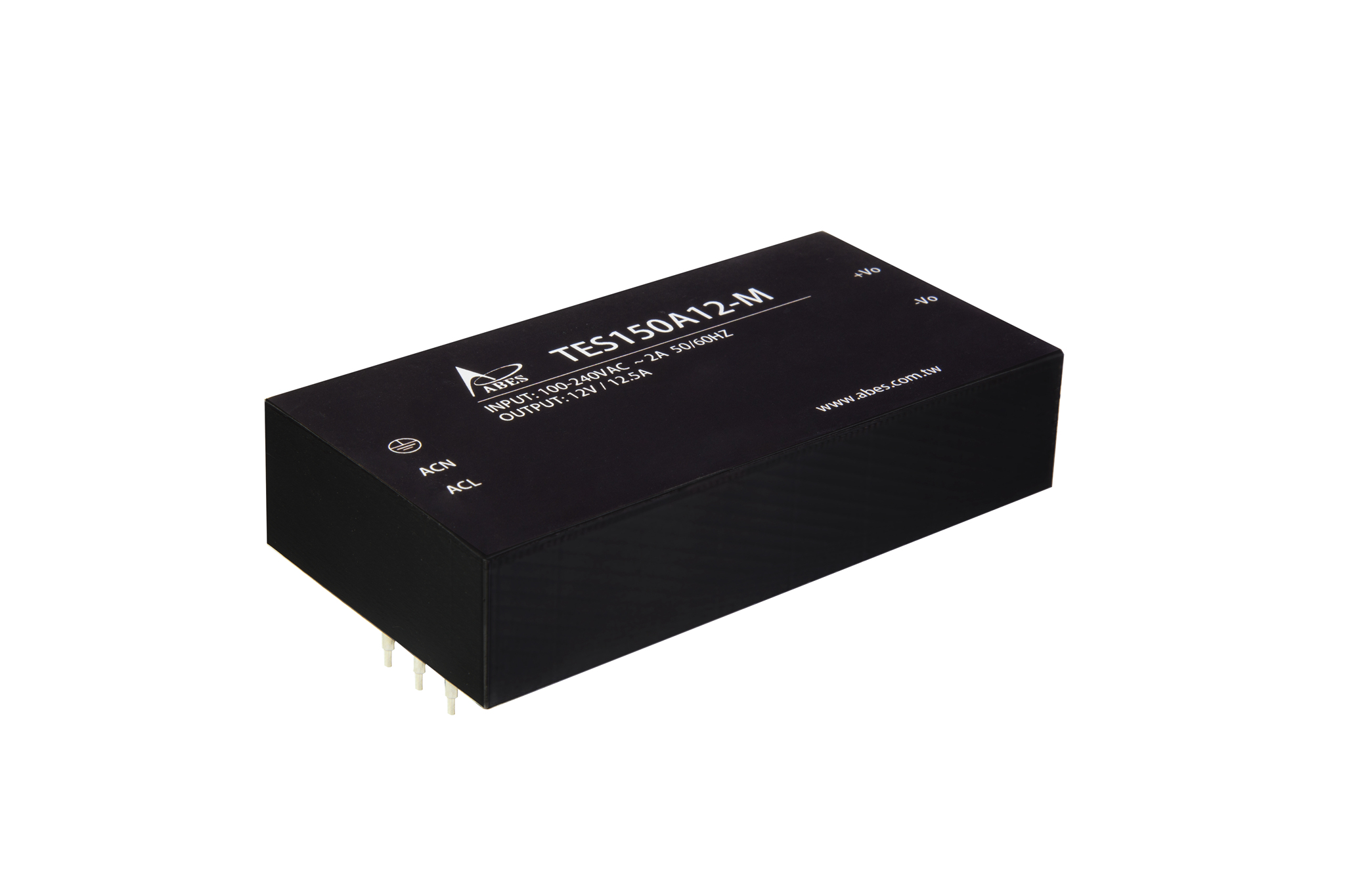

150W Chassis Mount AC-DC Module
TES150A-M
Universal AC Input and high efficiency, delivering up to 150W of reliable power.
Robust, encapsulated design available in three industrial mounting formats :
PCB Mount (TES150A-M): 4.3" x 2.2" x 1.4" (109 x 56 x 36 mm)
Screw Terminal (TES150A-S): 5" x 2.2" x 1" (127 x 56 x 25 mm)
DIN Rail Mount (TES150A-DS): 5" x 2.2" x 1.3" (127 x 56 x 33 mm)
Ultra-low no-load power consumption (<0.3W), ensuring compliance with global energy directives.
Operates reliably across an ultra-wide temperature range from -40°C to +70°C, ideal for demanding/harsh environments.
Comprehensive safety features: Includes (SCP), (OLP), and (OVP) protection.
|
MODEL SELECTION TABLE |
|||||
|
Type |
Model |
Output Voltage |
Output Current |
Output Watt |
|
|
PCB mounting |
TES150A12-M |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-M |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-M |
48 Vdc |
3.13A |
150W |
||
|
Screw terminal |
TES150A12-S |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-S |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-S |
48 Vdc |
3.13A |
150W |
||
|
DIN Rail (with Screw terminal) |
TES150A12-DS |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-DS |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-DS |
48 Vdc |
3.13A |
150W |
||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Input Voltage |
|
85 |
|
264 |
VAC |
|
Input Frequency |
|
47 |
|
63 |
Hz |
|
No Load Power |
|
|
|
0.3 |
W |
|
Power Factor |
At 230VAC, full load |
0.9 |
|
|
|
|
OUTPUT |
|||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Output Voltage |
|
|
12/24/48 |
|
VDC |
|
Hold Up Time |
At 115VAC |
|
16 |
|
ms |
|
Startup time |
|
|
|
|
|
|
Line Regulation |
90VAC to 264VAC at full load |
|
±0.5 |
|
% |
|
Load Regulation |
No load to full load |
|
±1 |
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
|
|
4 |
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 μF electrolytic capacitor in parallel with 0.1 μF ceramic capacitor. |
|
|
1 |
% (pk-pk) |
|
PROTECTION |
|||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Overvoltage Protection |
Latch |
110 |
|
140 |
% |
|
OverCurrent Protection |
Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Note: All specifications are typical at 25℃ unless otherwise noted. |
|||||
|
GENERAL |
|||||
|
Conditions |
Min |
Typ |
Max |
Unit |
|
|
Isolation Voltage |
Primary to Secondary |
|
3000 |
|
VAC |
|
Weight |
TES150Axx-M |
TBA |
G |
||
|
TES150Axx-S |
|||||
|
TES150Axx-DS |
|||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature |
|
-40 |
|
70 |
°C |
|
Storage Temperature |
|
-40 |
|
85 |
°C |
|
Operating Altitude |
|
|
3048 |
|
m |
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
|
Vibration |
Built to meet IEC68-2-6, 10-500 Hz, 2 g 10 mins /sweep. 60 mins for each of 3 axes |
||||
|
SAFETY |
|
|
Standard |
Built to meet UL/IEC/EN 62368-1 |
|
EMC- BUILT TO MEET THE ITEM BELOW |
|
|
Item |
Standard |
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A |
|
RS(Radiated) |
IEC 61000-4-3:2010, Criteria A |
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|
Surge |
IEC 61000-4-5:2014, Criteria A |
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|
Dip, >95% reduction |
IEC 61000-4-11:2004, Criteria A |
|
Dip, 30% reduction |
IEC 61000-4-11:2004, Criteria A |
|
Interruptions, >95% reduction |
IEC 61000-4-11:2004, Criteria B |
|
MODEL SELECTION TABLE |
|||||
|
Type |
Model |
Output Voltage |
Output Current |
Output Watt |
|
|
PCB mounting |
TES150A12-M |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-M |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-M |
48 Vdc |
3.13A |
150W |
||
|
Screw terminal |
TES150A12-S |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-S |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-S |
48 Vdc |
3.13A |
150W |
||
|
DIN Rail (with Screw terminal) |
TES150A12-DS |
12 Vdc |
12.5A |
150W |
|
|
TES150A24-DS |
24 Vdc |
6.25A |
150W |
||
|
TES150A48-DS |
48 Vdc |
3.13A |
150W |
||
TES150 Series – Flexible 150W Power Solutions
The TES150 Series from ABES delivers reliable 150W DC output with multiple
mounting options to meet diverse application needs. Available in PCB mounting,
screw terminal, and DIN rail versions, this series ensures easy integration
into industrial systems, automation, and communication equipment.
Key Features:
- Wide range of output models: 12V / 24V / 48V
- Continuous output power: 150W
- Multiple installation options: PCB, screw terminal, and DIN rail for maximum flexibility
- High efficiency and stable performance, designed for industrial-grade reliability
Model Options:
- PCB Mounting: TES150A12-M / TES150A24-M / TES150A48-M
- Screw Terminal: TES150A12-S / TES150A24-S / TES150A48-S
- DIN Rail (with Screw Terminal): TES150A12-DS / TES150A24-DS / TES150A48-DS
The TES150A Series is an encapsulated AC-DC power supply delivering up to 150W of reliable output power. Featuring a Universal AC Input range and an ultra-compact design, it is ideal for space-constrained industrial and embedded systems. It operates reliably across an ultra-wide temperature range from -40°C to +70°C, making it specifically suitable for demanding and harsh environments.
With no-load input power consumption below 0.3W, the TES150A meets stringent global energy efficiency requirements and supports energy-saving system designs. Built-in protections, including short circuit (SCP), overload (OLP), and overvoltage (OVP), ensure stable and safe operation.
Designed for industrial automation, the TES150A offers versatile installation with three flexible mounting options: PCB mount, screw terminal, and DIN rail. It meets global safety and EMC standards, including UL/IEC/EN 62368-1 and EN55032 Class B, ensuring compliance worldwide.
