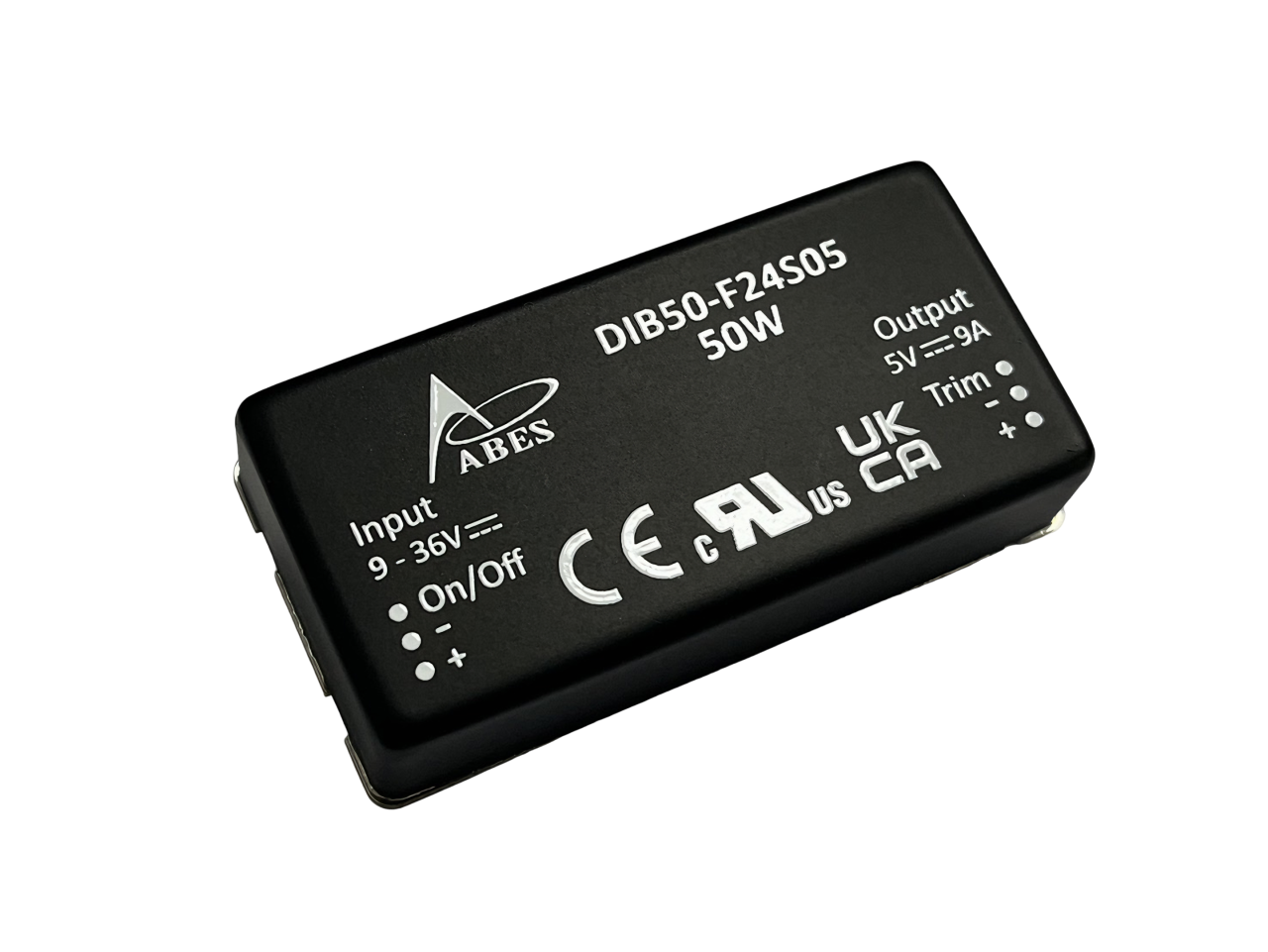

50Watts 4:1 Input Range 2x1 Inch Isolated DC-DC Converter
DIB50 Series
4:1 Input Range
Wide application
I/O Isolation 3000VDC
Efficiency up to 92%
Low No Load Power Consumption
Compact 2” x 1” Industry Package
Six-sided Shielding Copper Case
|
MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency |
Maximum Capacitive Load |
|
|
No Load |
Max Load |
||||||||
|
DIB50-F24S03 |
24 VDC (9~36) |
3.3 VDC |
12.12A |
12 mA |
1950mA |
3.9 VDC |
40W |
86% |
12000µF |
|
DIB50-F24S05 |
5V DC |
9A |
12 mA |
2110mA |
6.2 VDC |
45W |
89% |
6000µF |
|
|
DIB50-F24S12 |
12 VDC |
4.16A |
12 mA |
2280mA |
15 VDC |
50W |
92% |
3000µF |
|
|
DIB50-F24S15 |
15 VDC |
3.33A |
12 mA |
2300mA |
18 VDC |
50W |
91% |
1000µF |
|
|
DIB50-F24S24 |
24 VDC |
2.08A |
12 mA |
2320mA |
28 VDC |
50W |
90% |
440µF |
|
|
DIB50-F24S48 |
48 VDC |
1.04A |
12 mA |
2300mA |
56 VDC |
50W |
91% |
220µF |
|
|
DIB50-F24S54 |
54 VDC |
0.926A |
12 mA |
2300mA |
62 VDC |
50W |
91% |
220µF |
|
|
DIB50-F48S03 |
48 VDC (18~75) |
3.3 VDC |
12.12A |
9 mA |
970mA |
3.9 VDC |
40W |
87% |
12000µF |
|
DIB50-F48S05 |
5V DC |
9A |
9 mA |
1050mA |
6.2 VDC |
45W |
90% |
6000µF |
|
|
DIB50-F48S12 |
12 VDC |
4.16A |
9 mA |
1140mA |
15 VDC |
50W |
92% |
3000µF |
|
|
DIB50-F48S15 |
15 VDC |
3.33A |
9 mA |
1150mA |
18 VDC |
50W |
91% |
1000µF |
|
|
DIB50-F48S24 |
24 VDC |
2.08A |
9 mA |
1160mA |
28 VDC |
50W |
90% |
440µF |
|
|
DIB50-F48S48 |
48 VDC |
1.04A |
9 mA |
1150mA |
56 VDC |
50W |
91% |
220µF |
|
|
DIB50-F48S54 |
54 VDC |
0.926A |
9 mA |
1150mA |
62 VDC |
50W |
91% |
220µF |
|
|
DIB |
50 |
- |
F |
24 |
S |
12 |
|
|
|
Series |
Output Power |
|
Input Range |
Input Voltage (Nom.) |
Output Quantity |
Output Voltage |
Remote On/Off Logic |
Heatsink |
|
|
50: 50Watts |
|
Input Voltage |
24: 9 ~ 36V 48: 18~75V |
S: Single
|
03: 3.3V 05: 5.0V 12: 12V 15: 15V 24: 24V 48: 48V 54: 54V |
Blank: Positive Logic N: Negative Logic |
Blank: No heatsink fitted -H: Heatsink (Optional) |
|
SPECIFICATIONS: DIB50 SERIES |
||||||||||||||||
|
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. At least 330uF E-Cap is suggested to be added to the input terminal to stabilize the input voltage source. |
||||||||||||||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||
|
Input Voltage Range |
24VDC Nominal input models |
9 |
24 |
36 |
VDC |
|||||||||||
|
48VDC Nominal input models |
18 |
48 |
75 |
|||||||||||||
|
Input Surge Voltage (100ms max.) |
24VDC Nominal input models |
--- |
--- |
50 |
VDC |
|||||||||||
|
48VDC Nominal input models |
--- |
--- |
100 |
|||||||||||||
|
Start-up Threshold Voltage |
24VDC Nominal input models |
8.2 |
8.5 |
8.7 |
VDC |
|||||||||||
|
48VDC Nominal input models |
16.4 |
16.7 |
17 |
|||||||||||||
|
Under Voltage Lockout(UVLO) |
24VDC Nominal input models |
7 |
7.5 |
8 |
VDC |
|||||||||||
|
48VDC Nominal input models |
15 |
15.5 |
16 |
VDC |
||||||||||||
|
Input Current |
|
See model selection table |
||||||||||||||
|
Input filter |
|
Pi network filter |
||||||||||||||
|
OUTPUT |
||||||||||||||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||
|
Output Voltage |
|
See Table |
||||||||||||||
|
Line Regulation |
Low line to high line at full load |
-1 |
--- |
+1 |
%Vo |
|||||||||||
|
Load Regulation |
25-100% of lo |
-1 |
--- |
+1 |
%Vo |
|||||||||||
|
Output Voltage Setting Accuracy |
Max lo |
-1 |
--- |
+1 |
%Vo |
|||||||||||
|
Output Voltage Trim |
|
-10 |
--- |
+10 |
%Vo |
|||||||||||
|
Output Power |
|
See model selection table |
||||||||||||||
|
Output Current |
|
See model selection table |
||||||||||||||
|
Minimum Load |
|
No minimum load required |
||||||||||||||
|
Ripple & Noise |
At full load, nominal input Measured by 20MHz bandwidth with 1uF ceramic cap. and 10uF E-cap. Connected to the output pins. |
3.3VDC output |
--- |
--- |
30 |
mV |
||||||||||
|
5VDC output |
--- |
--- |
50 |
|||||||||||||
|
12VDC output |
--- |
--- |
120 |
|||||||||||||
|
15VDC output |
--- |
--- |
150 |
|||||||||||||
|
24VDC output |
--- |
--- |
240 |
|||||||||||||
|
48VDC output |
--- |
--- |
480 |
|||||||||||||
|
54VDC output |
--- |
--- |
540 |
|||||||||||||
|
Transient Recovery Time |
50% - 75% of lo, di/dt=0.1A/us |
--- |
300 |
500 |
μs |
|||||||||||
|
Transient Recovery Deviation |
|
--- |
±3 |
±5 |
%Vo |
|||||||||||
|
PROTECTION |
||||||||||||||||
|
Conditions |
Min |
Typ |
Max |
Unit |
||||||||||||
|
Output Over Voltage Protection |
Zener diode clamp |
See model selection table |
||||||||||||||
|
Over Current Protection |
% of Io rated; Hiccup mode |
130 |
--- |
180 |
%Io |
|||||||||||
|
Thermal Protection |
|
--- |
110 |
--- |
°C |
|||||||||||
|
Short Circuit Protection |
Short +Vo to VO |
Auto recovery |
||||||||||||||
|
GENERAL SPECIFICATIONS |
||||||||||||||||
|
Conditions |
Min |
Typ |
Max |
Unit |
||||||||||||
|
Efficiency |
|
See model selection table |
||||||||||||||
|
Switching Frequency |
|
--- |
220 |
--- |
KHz |
|||||||||||
|
Isolation Voltage |
Input to Output, 60 Sec |
--- |
--- |
3000 |
VDC |
|||||||||||
|
Isolation Resistance |
500VDC |
100 |
--- |
--- |
M Ohm |
|||||||||||
|
Isolation Capacitance |
|
--- |
1 |
--- |
nF |
|||||||||||
|
Maximum Capacitive Load |
|
See model selection table |
||||||||||||||
|
REMOTE ON/OFF |
||||||||||||||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||
|
Positive Logic |
Referred to - Vin pin |
Converter On |
open circuit or 2.5 ~ 12VDC |
|||||||||||||
|
Converter Off |
Short circuit or 0 ~ 0.8VDC |
|||||||||||||||
|
Negative Logic |
Converter On |
Short circuit or 0 ~ 0.8VDC |
||||||||||||||
|
Converter Off |
open circuit or 2.5 ~ 12VDC |
|||||||||||||||
|
Control Input Current |
On |
Vctrl = 5.0V |
--- |
0.5 |
--- |
mA |
||||||||||
|
Off |
Vctrl = 0V |
--- |
-0.5 |
--- |
||||||||||||
|
Stand-by Input idle Current |
Nominal Vin |
--- |
6.5 |
--- |
mA |
|||||||||||
|
ENVIRONMENTAL |
||||||||||||||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||
|
Operating Temperature |
With derating |
All models |
-40 |
--- |
+105 |
°C |
||||||||||
|
Case Temperature |
|
--- |
--- |
+105 |
°C |
|||||||||||
|
Storage Temperature |
|
-55 |
--- |
+125 |
°C |
|||||||||||
|
Humidity (non-condensing) |
|
--- |
--- |
95 |
% RH |
|||||||||||
|
RFI |
|
Six-sided shielding, metal case |
||||||||||||||
|
Cooling |
Natural convection is about 20LFM but is not equal to still air (0LFM) |
Natural convection |
||||||||||||||
|
Lead Temperature |
1.5mm from case for 10 seconds |
--- |
--- |
260 |
°C |
|||||||||||
PHYSICAL |
|
|
Weight |
36g (1.27oz) |
|
Dimension (L x W x H) |
2.0 x 1.0 x 0.45 inches (50.8 x 25.4 x 11.4 mm) |
|
Case Material |
Copper |
|
Base Material |
FR4 PCB (Flammability to UL 94V-0 rated) |
|
Pin Material |
Copper alloy |
|
SAFETY & EMC |
|||
|
Safety Approvals |
UL/cUL 62368-1 (CSA certificate) ; IEC/EN 62368-1 (CB-report) |
||
|
EMI (external circuit required ) |
EN55032, FCC part 15 |
Class A |
|
|
EMS (external circuit required ) |
ESD |
EN61000-4-2 Air: ±8KV, Contact: ±6KV |
Criteria A |
|
Radiated Immunity |
EN61000-4-3 10V/m |
Criteria A |
|
|
Fast Transient |
EN61000-4-4 ±2KV |
Criteria A |
|
|
Surge |
EN61000-4-5 ±1KV |
Criteria A |
|
|
Conducted Immunity |
EN61000-4-6 10V/m |
Criteria A |
|
|
NOTES |
|
1. Transient recovery time is measured to within 1% error band for a step change in output load from 50% to 75%. 2. This power module is not internally fused. We recommend protecting the converter by a slow blow fuse in the input supply line. 3. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor 330µF/100v. 4. The purpose for more stable at the output terminal, the output voltage of 3.3VDC requires to add an 330uf E-Cap. The output voltage of 5VDC, 12VDC and 15VDC require a 100uF E-Cap to stabilize the output terminal. The output voltage of 24VDC, 48VDC and 54VDC are not necessary required for E-Cap. 5. Do not exceed maximum power specifications when adjusting the output voltage. 6. This product is listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
|
|

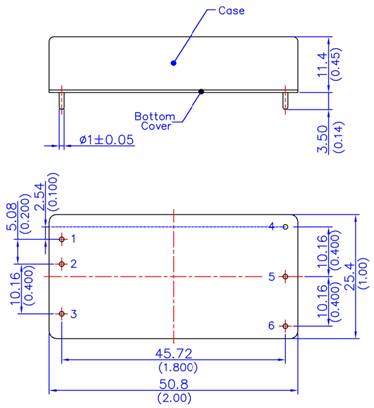

Unit: mm(Inches) Tolerance: x.x ±1.0 (x.xx ±0.04) x.xx ±0.5 (x.xxx ±0.02) Pin length tolerance: ±0.5 (±0.02) Case Size: 50.8 x 25.4 x 11.4 mm (2.00 x 1.00 x 0.45 inches) Case Material: Copper Base Material: FR4 PCB Pin Material: Copper alloy Plating treatment of Pin : Matte Tin Plating and Nickel under Plating Weight: 36g (1.27oz) |
||||||||||||||||
|

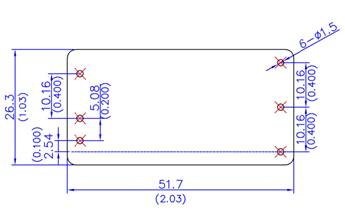

STANDARD PCB LAYOUT |
|||||||||||||||||
|
|
* Recommended Pad and Hole dia. (TOP VIEW) * Unit : 0.1inch * Dimension : mm
|
||||||||||||||||
|
CHARACTERISTIC CURVE |
|
|
DIB50-F24S03 3.3 V, 12.12 A / 40 W |
|
|

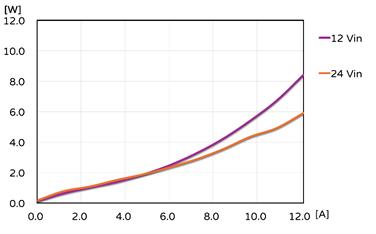

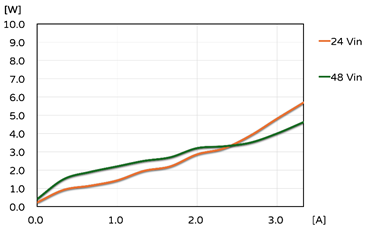

Power Dissipation |

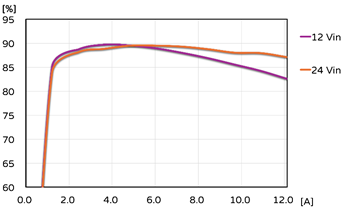

Efficiency |
|
|
|
|

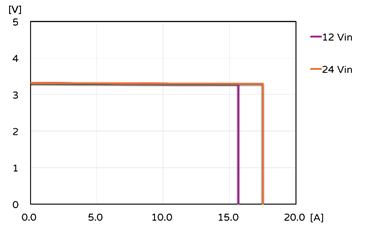

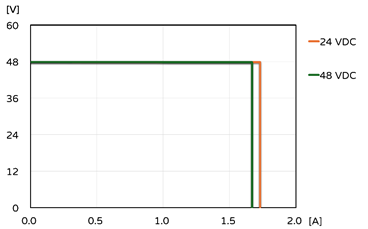

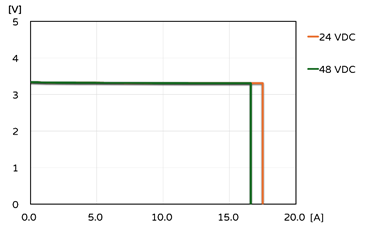

Current Limit Characteristics |

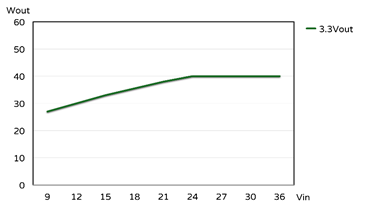

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|

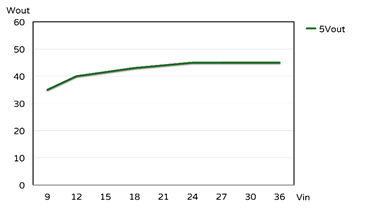

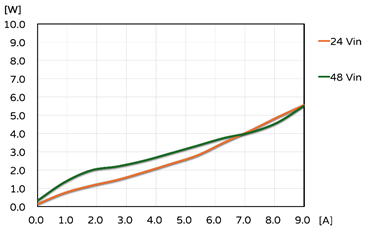

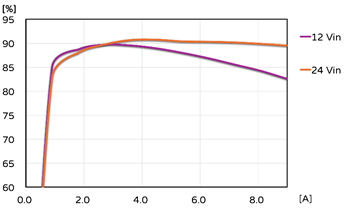

DIB50-F24S05 5 V, 9 A / 45 W |
|
|

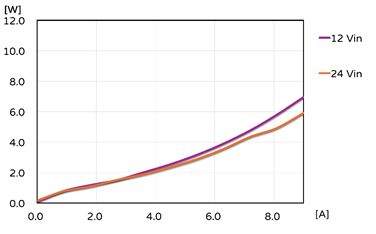

Power Dissipation |

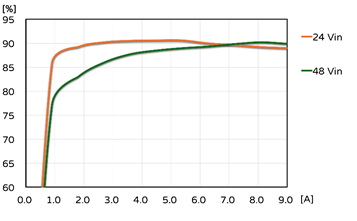

Efficiency |
|
|
|
|

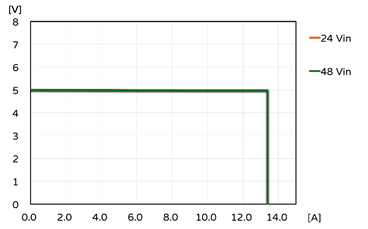

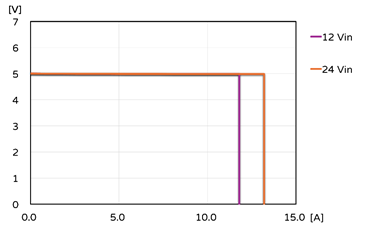

Current Limit Characteristics |
Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|

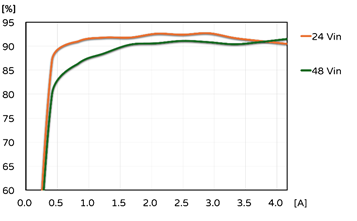

DIB50-F24S12 12 V, 4.16 A / 50 W |
|
|

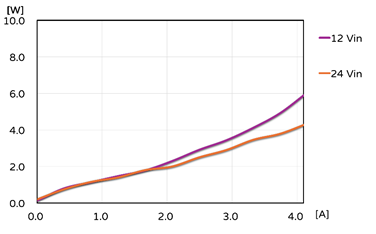

Power Dissipation |

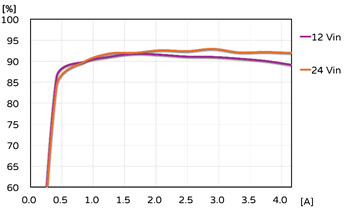

Efficiency |
|
|
|
|

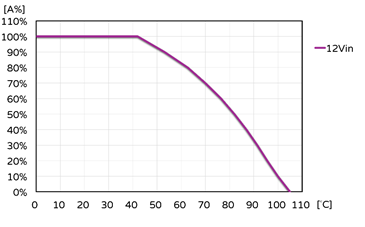

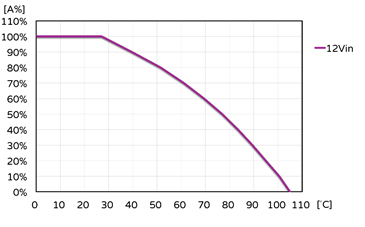

Output Current Derating (Vin=12V) |
Output Current Derating (Vin=24V) |
|
|
|
|

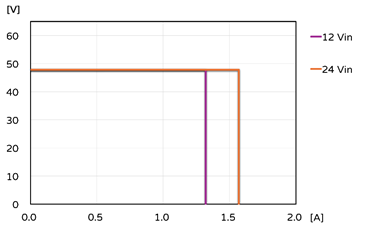

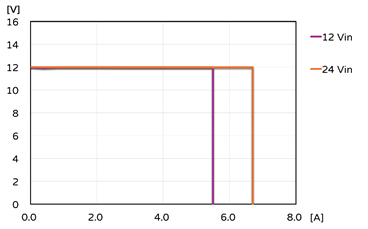

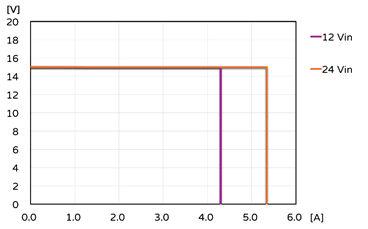

Current Limit Characteristics |

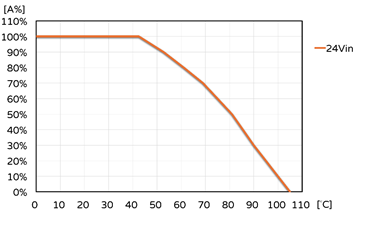

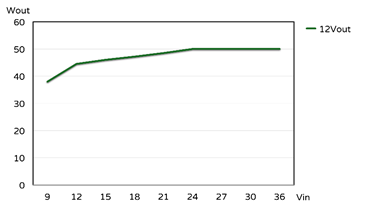

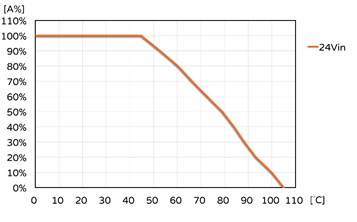

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|

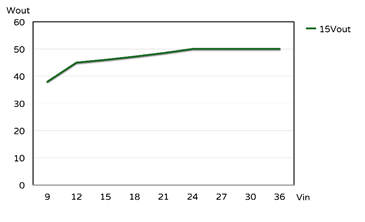

DIB50-F24S15 15 V, 3.33 A / 50 W |
|
|

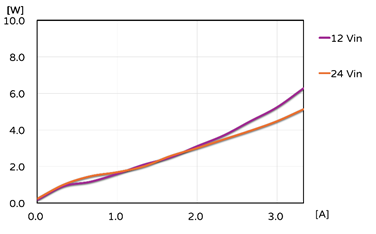

Power Dissipation |

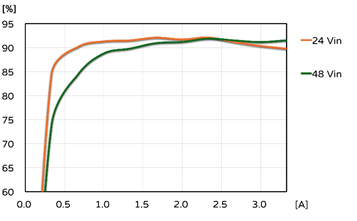

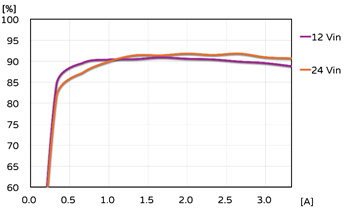

Efficiency |
|
|
|
|
Current Limit Characteristics |

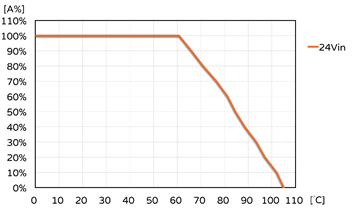

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F24S24 24 V, 2.08 A / 50 W |
|
|

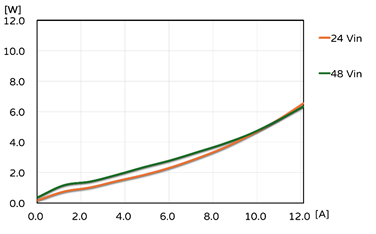

Power Dissipation |

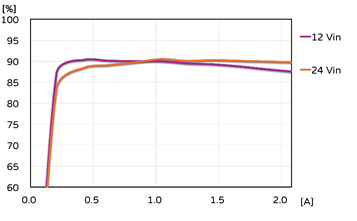

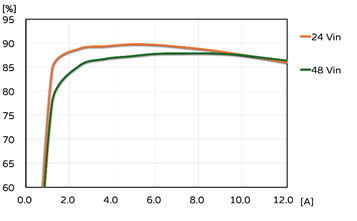

Efficiency |
|
|
|
|
Output Current Derating (Vin=12V) |
Output Current Derating (Vin=24V) |
|
|
|
|

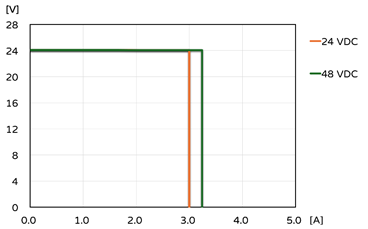

Current Limit Characteristics |

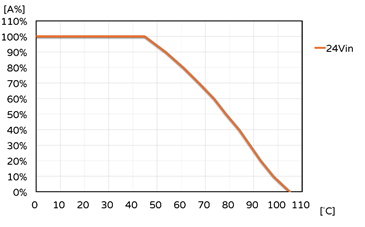

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|

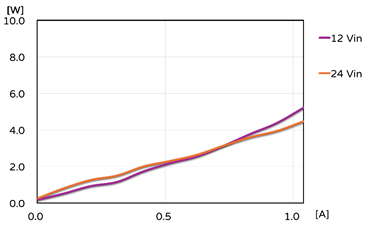

DIB50-F24S48 48 V, 1.04 A / 50 W |
|
|

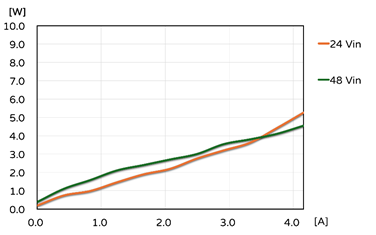

Power Dissipation |

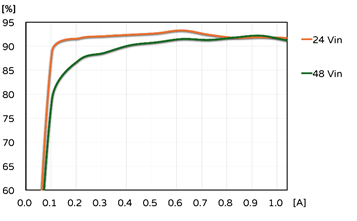

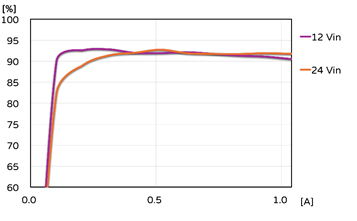

Efficiency |
|
|
|
|
Current Limit Characteristics |

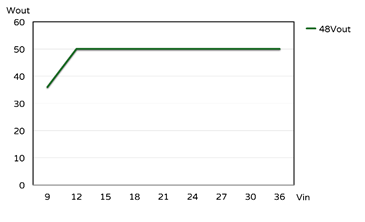

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F24S54 54 V, 0.926 A / 50 W |
|
|

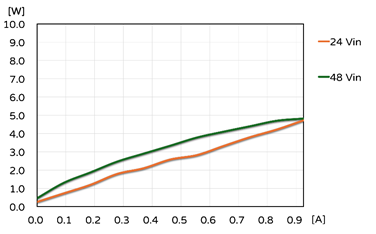

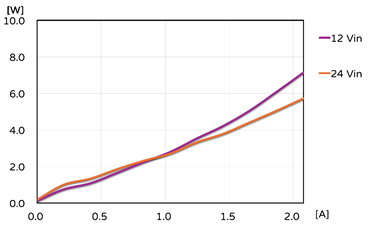

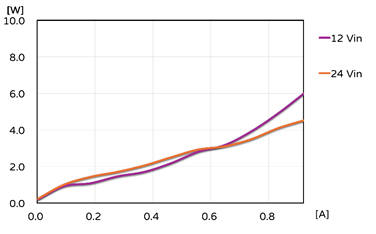

Power Dissipation |
Efficiency |
|
|
|
|

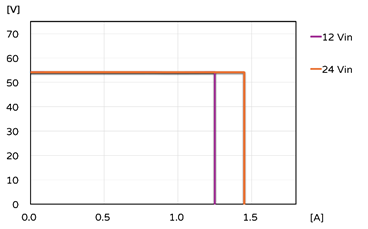

Current Limit Characteristics |

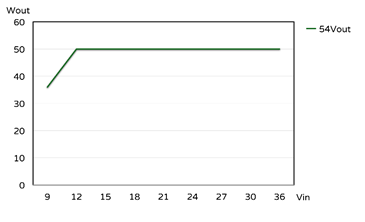

Input Voltage Derating Curve |
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F48S03 3.3 V, 12.12 A / 40 W |
|
|
Power Dissipation |
Efficiency |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F48S05 5 V, 9 A / 45 W |
|
|
Power Dissipation |
Efficiency |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|
CHARACTERISTIC CURVE |
|
|

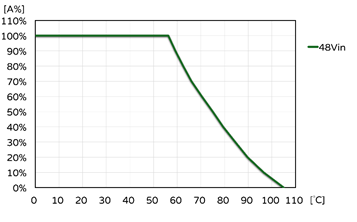

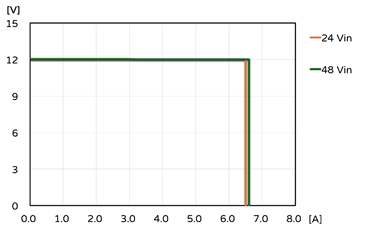

DIB50-F48S12 12 V, 4.16 A / 50 W |
|
|
Power Dissipation |
Efficiency |
|
|
|
|
Output Current Derating (Vin=24V) |

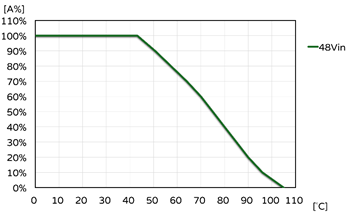

Output Current Derating (Vin=48V) |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F48S15 15 V, 3.33 A / 50 W |
|
|
Power Dissipation |
Efficiency |
|
|
|
|

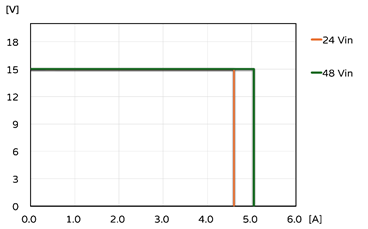

Current Limit Characteristics |
|
|
|
|
|
CHARACTERISTIC CURVE |
|
|

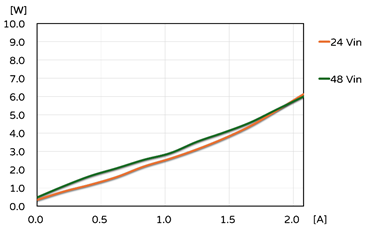

DIB50-F48S24 24 V, 2.08 A / 50 W |
|
|
Power Dissipation |

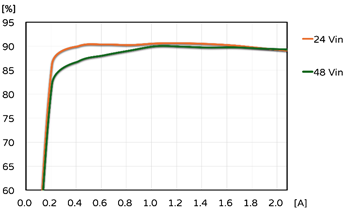

Efficiency |
|
|
|
|
Output Current Derating (Vin=24V) |
Output Current Derating (Vin=48V) |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|
CHARACTERISTIC CURVE |
|
|
DIB50-F48S48 48 V, 1.04 A / 50 W |
|
|

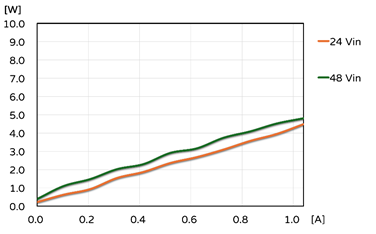

Power Dissipation |
Efficiency |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|

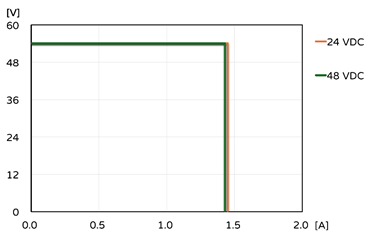

CHARACTERISTIC CURVE |
|
|
DIB50-F48S54 54 V, 0.926 A / 50 W |
|
|
Power Dissipation |

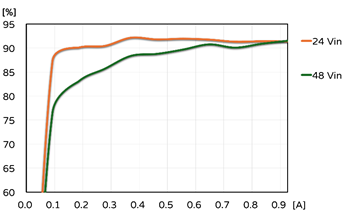

Efficiency |
|
|
|
|
Current Limit Characteristics |
|
|
|
|
|

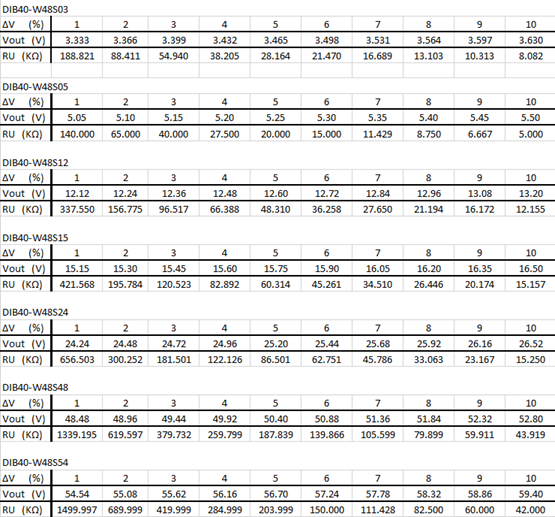

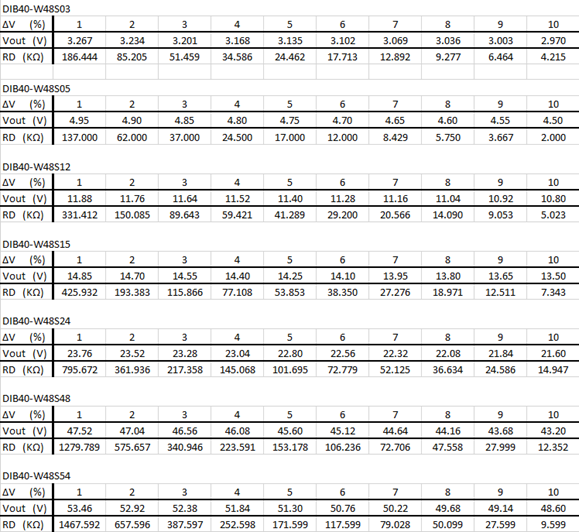

OUTPUT VOLTAGE ADJUSTMENT |
|
Output voltage trim allows the user to increase or decrease the output voltage of a module. This is accomplished by connecting an external resistor between the Trim pin and either the +Vout or -Vout pins. With an external resistor between the Trim and -Vout pins, the output voltage increases. With an external resistor between the Trim and +Vout pins, the output voltage set-point decreases. |
|
Trim-up |
|
|
|
|
|
Trim-down |
|
|
|
|
|
MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency |
Maximum Capacitive Load |
|
|
No Load |
Max Load |
||||||||
|
DIB50-F24S03 |
24 VDC (9~36) |
3.3 VDC |
12.12A |
12 mA |
1950mA |
3.9 VDC |
40W |
86% |
12000µF |
|
DIB50-F24S05 |
5V DC |
9A |
12 mA |
2110mA |
6.2 VDC |
45W |
89% |
6000µF |
|
|
DIB50-F24S12 |
12 VDC |
4.16A |
12 mA |
2280mA |
15 VDC |
50W |
92% |
3000µF |
|
|
DIB50-F24S15 |
15 VDC |
3.33A |
12 mA |
2300mA |
18 VDC |
50W |
91% |
1000µF |
|
|
DIB50-F24S24 |
24 VDC |
2.08A |
12 mA |
2320mA |
28 VDC |
50W |
90% |
440µF |
|
|
DIB50-F24S48 |
48 VDC |
1.04A |
12 mA |
2300mA |
56 VDC |
50W |
91% |
220µF |
|
|
DIB50-F24S54 |
54 VDC |
0.926A |
12 mA |
2300mA |
62 VDC |
50W |
91% |
220µF |
|
|
DIB50-F48S03 |
48 VDC (18~75) |
3.3 VDC |
12.12A |
9 mA |
970mA |
3.9 VDC |
40W |
87% |
12000µF |
|
DIB50-F48S05 |
5V DC |
9A |
9 mA |
1050mA |
6.2 VDC |
45W |
90% |
6000µF |
|
|
DIB50-F48S12 |
12 VDC |
4.16A |
9 mA |
1140mA |
15 VDC |
50W |
92% |
3000µF |
|
|
DIB50-F48S15 |
15 VDC |
3.33A |
9 mA |
1150mA |
18 VDC |
50W |
91% |
1000µF |
|
|
DIB50-F48S24 |
24 VDC |
2.08A |
9 mA |
1160mA |
28 VDC |
50W |
90% |
440µF |
|
|
DIB50-F48S48 |
48 VDC |
1.04A |
9 mA |
1150mA |
56 VDC |
50W |
91% |
220µF |
|
|
DIB50-F48S54 |
54 VDC |
0.926A |
9 mA |
1150mA |
62 VDC |
50W |
91% |
220µF |
|
The DIB50 Series offers up to 50W of output power with outstanding efficiency (up to 92%) in a compact 2" × 1" package. With its wide 8:1 input range (9~75VDC), 3000VDC isolation, and comprehensive protection features, the DIB50 is the ideal solution for demanding industrial applications.
Key Advantages
- Wide input range for versatile applications (24VDC: 9–36V / 48VDC: 18–75V)
- High efficiency up to 92% for reliable power performance
- Compact design with low no-load consumption
- Over-voltage protection for enhanced safety
- High capacitive load capability (up to 12,000µF)
Model Selection Overview
- 24VDC Input Models (9–36V):
- 48VDC Input Models (18–75V):
The DIB50 DC-DC Converter Series from ABES is engineered to deliver outstanding performance in demanding industrial environments.
With a 4:1 ultra-wide input range and up to 92% efficiency, it minimizes energy loss, extends battery life, and ensures sustainable power conversion.
Housed in a compact 2” x 1” industry-standard package with a six-sided shielding copper case,
the DIB50 guarantees excellent thermal management, superior EMI suppression, and reduced radiated noise—all while saving valuable board space.
Backed by 3000VDC I/O isolation and full compliance with IEC/UL/EN 62368-1 safety standards,
the DIB50 offers proven reliability for industrial automation, test equipment, telecommunications, and embedded systems.
DIB50 = Higher Efficiency. Safer Operation. Longer Battery Life. Smaller Footprint.
Your next-generation industrial power solution starts here.
