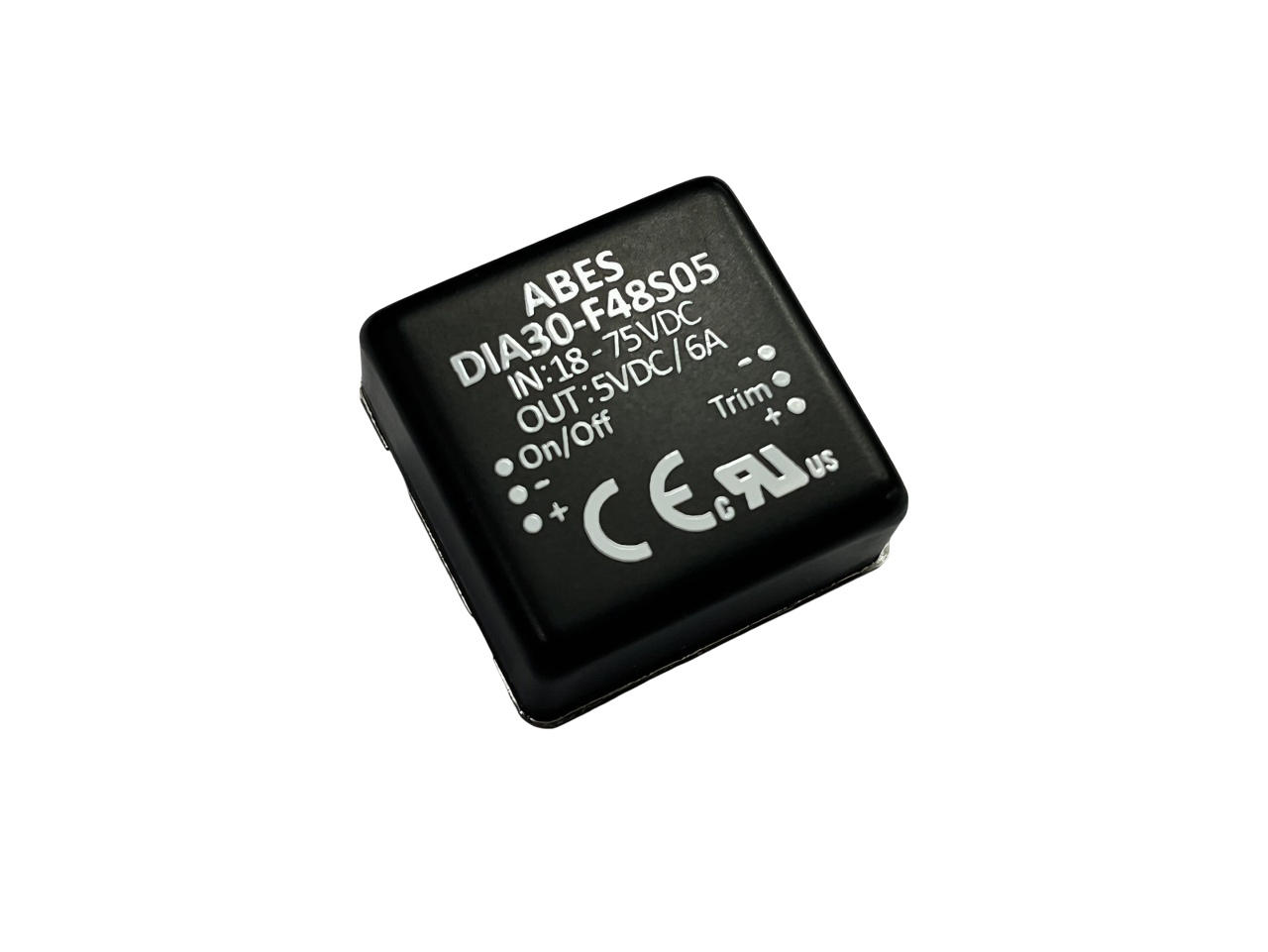

30Watts 4:1 Input Range 1x1 Inch Isolated DC-DC Converter
DIA30 Series
Wide 4:1 Input Range
I/O Isolation 3000VDC
Efficiency up to 91%
Low No Load Power Consumption
Compact 1” x 1” Industry Package
Six-sided Shielding Copper Case
remote on/off control • -40 to 105°C temperature range
UL/cUL 62368-1 pending
MODEL SELECTION TABLE |
|||||||||
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency |
Maximum Capacitive Load |
|
No Load |
Max Load |
||||||||
DIA30-F24S03 |
24 VDC (9~36) |
3.3 VDC |
7 A |
10 mA |
1106mA |
3.9 VDC |
23.1 W |
88% |
15000 µF |
DIA30-F24S05 |
5 VDC |
6 A |
10 mA |
1390mA |
6.2 VDC |
30 W |
90% |
8000 µF |
|
DIA30-F24S12 |
12 VDC |
2.5 A |
10 mA |
1380mA |
15 VDC |
30 W |
92% |
3000 µF |
|
DIA30-F24S15 |
15 VDC |
2 A |
10 mA |
1390mA |
18 VDC |
30 W |
91% |
1200 µF |
|
DIA30-F24S24 |
24 VDC |
1.25 A |
10 mA |
1404mA |
28 VDC |
30 W |
90% |
820 µF |
|
DIA30-F24S48 |
48 VDC |
0.625A |
10 mA |
1404mA |
56 VDC |
30 W |
90% |
150 µF |
|
DIA30-F24S54 |
54 VDC |
0.463A |
10 mA |
1185mA |
62 VDC |
25 W |
90% |
100 µF |
|
DIA30-F48S03 |
48 VDC (18~75) |
3.3 VDC |
7 A |
7 mA |
553mA |
3.9 VDC |
23.1W |
88% |
15000 µF |
DIA30-F48S05 |
5VDC |
6 A |
7 mA |
702mA |
6.2 VDC |
30 W |
90% |
8000 µF |
|
DIA30-F48S12 |
12 VDC |
2.5 A |
7 mA |
670mA |
15 VDC |
30 W |
92% |
3000 µF |
|
DIA30-F48S15 |
15 VDC |
2 A |
7 mA |
695mA |
18 VDC |
30 W |
91% |
1200 µF |
|
DIA30-F48S24 |
24 VDC |
1.25 A |
7 mA |
702mA |
28 VDC |
30 W |
90% |
820 µF |
|
DIA30-F48S48 |
48 VDC |
0.625A |
7 mA |
702mA |
56 VDC |
30 W |
90% |
150 µF |
|
DIA30-F48S54 |
54 VDC |
0.463A |
7 mA |
585mA |
62 VDC |
25 W |
90% |
100 µF |
SPECIFICATIONS: DIA30 SERIES |
||||||||||||||||||||
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. At least 330uF E-Cap is suggested to be added to the input terminal to stabilize the input voltage source. |
||||||||||||||||||||
|
||||||||||||||||||||
INPUT |
||||||||||||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||||||
Input Voltage Range |
24VDC Nominal input models |
9 |
24 |
36 |
VDC |
|||||||||||||||
48VDC Nominal input models |
18 |
48 |
75 |
|||||||||||||||||
Input Surge Voltage (100ms max.) |
24VDC Nominal input models |
--- |
--- |
50 |
VDC |
|||||||||||||||
48VDC Nominal input models |
--- |
--- |
100 |
|||||||||||||||||
Start-up Threshold Voltage |
24VDC Nominal input models |
--- |
--- |
8.7 |
VDC |
|||||||||||||||
48VDC Nominal input models |
--- |
--- |
17 |
|||||||||||||||||
Under Voltage Lockout(UVLO) |
24VDC Nominal input models |
--- |
7.7 |
--- |
VDC |
|||||||||||||||
48VDC Nominal input models |
--- |
15.5 |
--- |
VDC |
||||||||||||||||
Input Current |
|
See model selection table |
||||||||||||||||||
Input filter |
|
Pi network filter |
||||||||||||||||||
OUTPUT |
||||||||||||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||||||
Output Voltage |
|
See Table |
||||||||||||||||||
Line Regulation |
Low line to high line at full load |
-1 |
--- |
+1 |
%Vo |
|||||||||||||||
Load Regulation |
25-100% of lo |
-1 |
--- |
+1 |
%Vo |
|||||||||||||||
Output Voltage Setting Accuracy |
Max lo |
-1 |
--- |
+1 |
%Vo |
|||||||||||||||
Output Voltage Trim |
|
-10 |
--- |
+10 |
%Vo |
|||||||||||||||
Output Power |
|
See model selection table |
||||||||||||||||||
Output Current |
|
See model selection table |
||||||||||||||||||
Minimum Load |
|
No minimum load required |
||||||||||||||||||
Ripple & Noise |
Vin=48V, max lo. Measured by 20MHz bandwidth with 1uF ceramic cap. and 10uF E-cap. Connected to the output pins. |
3.3VDC output |
--- |
--- |
75 |
mV |
||||||||||||||
5VDC output |
--- |
--- |
75 |
|||||||||||||||||
12VDC output |
--- |
--- |
100 |
|||||||||||||||||
15VDC output |
--- |
--- |
100 |
|||||||||||||||||
24VDC output |
--- |
--- |
240 |
|||||||||||||||||
48VDC output |
--- |
--- |
480 |
|||||||||||||||||
54VDC output |
--- |
--- |
540 |
|||||||||||||||||
Transient Recovery Time |
50% - 75% of lo, di/dt=0.1A/us |
--- |
300 |
500 |
us |
|||||||||||||||
Transient Recovery Deviation |
|
3 |
5 |
%Vo |
||||||||||||||||
|
||||||||||||||||||||
PROTECTION |
||||||||||||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||||||
Output Over Voltage Protection |
Zener diode clamp |
See model selection table |
||||||||||||||||||
Over Current Protection |
% of Io rated; Hiccup mode |
110 |
--- |
170 |
%Io |
|||||||||||||||
Thermal Protection |
|
--- |
110 |
--- |
°C |
|||||||||||||||
Short Circuit Protection |
Short +Vo to VO |
Auto recovery |
||||||||||||||||||
|
||||||||||||||||||||
GENERAL |
||||||||||||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||||||
Efficiency |
|
See model selection table |
||||||||||||||||||
Switching Frequency |
|
--- |
280 |
--- |
KHz |
|||||||||||||||
Isolation Voltage |
Input to Output, 60 Sec |
--- |
--- |
3000 |
VDC |
|||||||||||||||
Isolation Resistance |
500VDC |
100 |
--- |
--- |
M Ohm |
|||||||||||||||
Isolation Capacitance |
|
--- |
---- |
1 |
nF |
|||||||||||||||
Maximum Capacitive Load |
|
See model selection table |
||||||||||||||||||
REMOTE ON/OFF |
||||||||||||||||||||
Specification |
||||||||||||||||||||
Positive Logic |
Referred to - Vin pin |
Converter On |
open circuit or 2.5 ~ 12VDC |
|||||||||||||||||
Converter Off |
Short circuit or 0 ~ 0.8VDC |
|||||||||||||||||||
Negative Logic |
Converter On |
Short circuit or 0 ~ 0.8VDC |
||||||||||||||||||
Converter Off |
open circuit or 2.5 ~ 12VDC |
|||||||||||||||||||
Control Input Current |
On |
Vctrl = 5.0V |
--- |
0.5 |
--- |
mA |
||||||||||||||
Off |
Vctrl = 0V |
--- |
-0.5 |
--- |
||||||||||||||||
Stand-by Input idle Current |
Nominal Vin |
--- |
2.5 |
--- |
mA |
|||||||||||||||
|
||||||||||||||||||||
ENVIRONMENTAL |
||||||||||||||||||||
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|||||||||||||||
Operating Temperature (Without Heatsink) |
Natural air convection (20LFM) Nominal Vin and full load |
All models |
-40 |
--- |
40 |
°C |
||||||||||||||
Case Temperature |
|
--- |
--- |
+105 |
°C |
|||||||||||||||
Storage Temperature |
|
-55 |
--- |
+125 |
°C |
|||||||||||||||
Humidity (non-condensing) |
|
--- |
--- |
95 |
% RH |
|||||||||||||||
RFI |
|
Six-sided shielding, metal case |
||||||||||||||||||
Cooling |
Natural convection is about 20LFM but is not equal to still air (0LFM) |
Natural convection |
||||||||||||||||||
Lead Temperature |
1.5mm from case for 10 seconds |
--- |
--- |
260 |
°C |
|||||||||||||||
|
|
|
|
|
|
|||||||||||||||
PHYSICAL |
||||||||||||||||||||
Weight |
18g (0.63oz) |
|||||||||||||||||||
Dimension (L x W x H) |
1.00 x 1.00 x 0.43 inches (25.4 x 25.4 x 10.9 mm) |
|||||||||||||||||||
Case Material |
Copper |
|||||||||||||||||||
Base Material |
FR4 PCB (Flammability to UL 94V-0 rated) |
|||||||||||||||||||
Pin Material |
Copper alloy |
|||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
SAFETY & EMC |
||||||||||||||||||||
Safety Approvals |
UL/cUL 62368-1 recognition (CSA certificate) |
|||||||||||||||||||
IEC/EN 62368-1 (CB-scheme) |
||||||||||||||||||||
EMI (external circuit required ) |
EN55032, FCC part 15 |
Class A |
||||||||||||||||||
EMS (external circuit required ) |
ESD |
EN61000-4-2 Air: ±8KV, Contact: ±6KV |
A |
|||||||||||||||||
Radiated Immunity |
EN61000-4-3 10V/m |
A |
||||||||||||||||||
Fast Transient |
EN61000-4-4 ±2KV |
A |
||||||||||||||||||
Surge |
EN61000-4-5 ±1KV |
A |
||||||||||||||||||
Conducted Immunity |
EN61000-4-6 10V/m |
A |
||||||||||||||||||
NOTES |
1. Transient recovery time is measured to within 1% error band for a step change in output load from 50% to 75%. 2. This power module is not internally fused. We recommend protecting the converter by a slow blow fuse in the input supply line. 3. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor 330µF/100v. 4. This product is listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
MODEL SELECTION TABLE |
|||||||||
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection(typ.) |
Output Power |
Efficiency |
Maximum Capacitive Load |
|
No Load |
Max Load |
||||||||
DIA30-F24S03 |
24 VDC (9~36) |
3.3 VDC |
7 A |
10 mA |
1106mA |
3.9 VDC |
23.1 W |
88% |
15000 µF |
DIA30-F24S05 |
5 VDC |
6 A |
10 mA |
1390mA |
6.2 VDC |
30 W |
90% |
8000 µF |
|
DIA30-F24S12 |
12 VDC |
2.5 A |
10 mA |
1380mA |
15 VDC |
30 W |
92% |
3000 µF |
|
DIA30-F24S15 |
15 VDC |
2 A |
10 mA |
1390mA |
18 VDC |
30 W |
91% |
1200 µF |
|
DIA30-F24S24 |
24 VDC |
1.25 A |
10 mA |
1404mA |
28 VDC |
30 W |
90% |
820 µF |
|
DIA30-F24S48 |
48 VDC |
0.625A |
10 mA |
1404mA |
56 VDC |
30 W |
90% |
150 µF |
|
DIA30-F24S54 |
54 VDC |
0.463A |
10 mA |
1185mA |
62 VDC |
25 W |
90% |
100 µF |
|
DIA30-F48S03 |
48 VDC (18~75) |
3.3 VDC |
7 A |
7 mA |
553mA |
3.9 VDC |
23.1W |
88% |
15000 µF |
DIA30-F48S05 |
5VDC |
6 A |
7 mA |
702mA |
6.2 VDC |
30 W |
90% |
8000 µF |
|
DIA30-F48S12 |
12 VDC |
2.5 A |
7 mA |
670mA |
15 VDC |
30 W |
92% |
3000 µF |
|
DIA30-F48S15 |
15 VDC |
2 A |
7 mA |
695mA |
18 VDC |
30 W |
91% |
1200 µF |
|
DIA30-F48S24 |
24 VDC |
1.25 A |
7 mA |
702mA |
28 VDC |
30 W |
90% |
820 µF |
|
DIA30-F48S48 |
48 VDC |
0.625A |
7 mA |
702mA |
56 VDC |
30 W |
90% |
150 µF |
|
DIA30-F48S54 |
54 VDC |
0.463A |
7 mA |
585mA |
62 VDC |
25 W |
90% |
100 µF |
