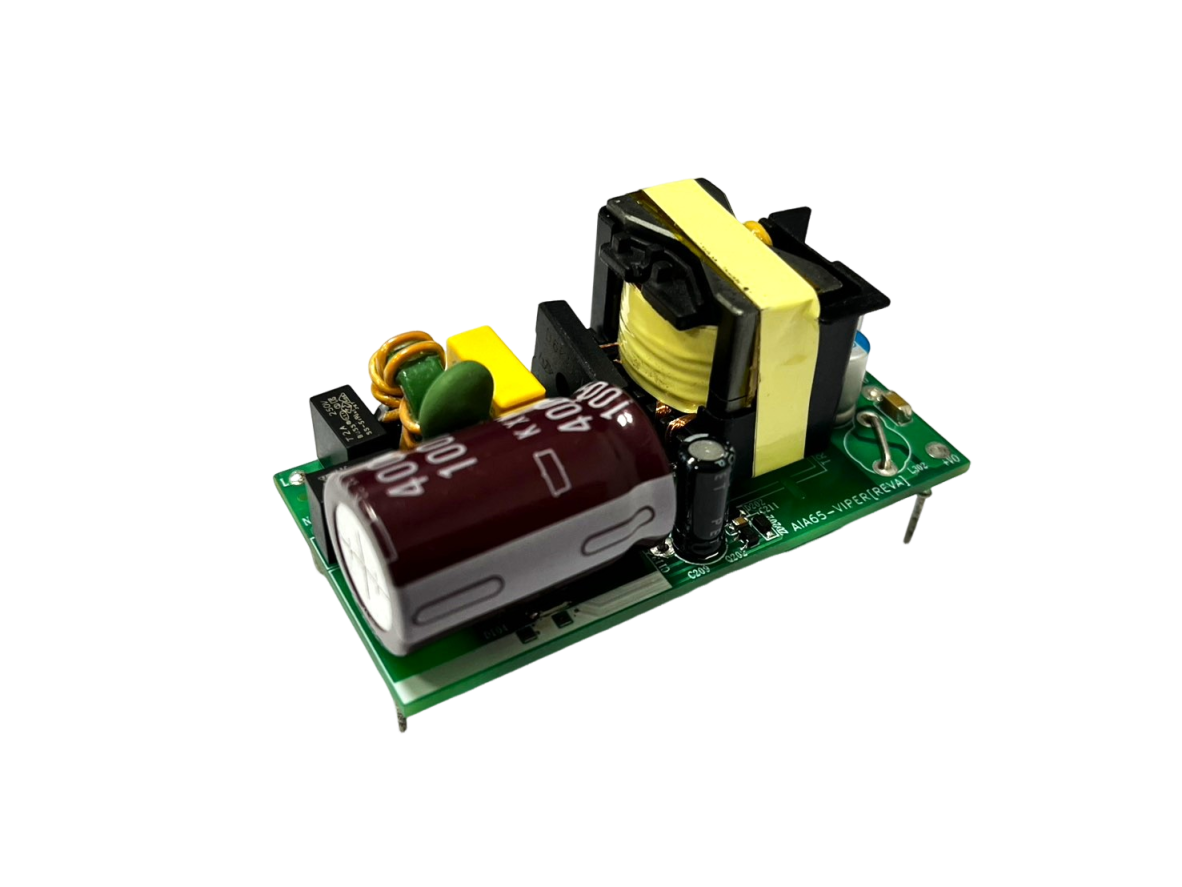

65 Watts AC-DC 2x1 Inch ITE Open Frame Power Supply
AIA65 Series
65 W Convection-Cooled(GaN techniques)
2 x 1 Inch Compact Size
No Load Input Power < 0.4 W
Efficiency up to 94%
Meets Class II
Meets EN55032 (Class B)
Meets ITE Safety Approval UL/IEC/EN 62368-1
|
MODEL SELECTION TABLE |
||||||
|
Model Number |
Input Voltage |
Output Voltage |
Main Output (Current, Watt) |
Efficiency |
Capacitive Load (max.) |
|
|
Convection |
||||||
|
AIA65-S12 |
85̃～264 VAC |
12 VDC |
5.4 A |
65W |
90% |
3000 uF |
|
AIA65-S24 |
24 VDC |
2.7 A |
65W |
92% |
800 uF |
|
|
AIA65-S48 |
48 VDC |
1.35 A |
65W |
92% |
220 uF |
|
|
AIA65-S54 |
54 VDC |
1.2 A |
65W |
92% |
180 uF |
|
|
SPECIFICATIONS: AIA65 SERIES |
|
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. |
|
INPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Input Voltage |
AC input DC input |
85 120 |
|
264 370 |
VAC VDC |
|
Input Current |
115VAC and Full Load |
|
|
1.2 |
A |
|
Input Frequency |
AC input |
47 |
|
63 |
Hz |
|
Inrush Current |
230VAC, cold start@25°C |
|
|
65 |
A |
|
No Load Input Power |
without Fan |
|
|
0.5 |
W |
|
Leakage Current |
|
|
|
150 |
uA |
|
OUTPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Output Voltage |
12/24/48/54 |
|
|
|
VDC |
|
Hold Up time |
At 115VAC |
10 |
|
|
ms |
|
Line Regulation |
90VAC to 264VAC at full load |
±0.5 |
|
|
% |
|
Load Regulation |
No load to full load |
±1 |
|
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
3 |
|
|
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
1 |
|
|
% |
|
Peak Power |
|
|
|
80 |
W |
|
PROTECTION |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Over Voltage Protection |
Latch |
110 |
|
140 |
% |
|
Over Current Protection |
based on 65W, Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Over Temp Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
ENVIRONMENTAL |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature |
With derating |
-40 |
|
85 |
°C |
|
Storage Temperature |
All Model |
-40 |
|
85 |
°C |
|
Altitude |
|
|
|
5000 |
m |
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
|
Specification |
Conditions |
|
|
Isolation Voltage |
Primary to Secondary |
3000 VAC |
|
Isolation Resistance |
I/P-O/P ; I/P-FG ; O/P-FG |
100M Ohms / 500VDC |
|
Size (WxLxH) |
1”x 2.3” x 1” |
|
|
SAFETY |
|
|
Standard |
meet UL/IEC/EN 62368-1 & CLASS II |
|
EMC |
|
|
Characteristic |
Standard |
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A ; 15KV air ; 8KV contact |
|
RS(Radiated) |
IEC 61000-4-3:2010, Criteria A |
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|
Surge |
IEC 61000-4-5:2014, Criteria A ; 2KV/Line-FG ; 1KV/Line-Line |
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|
Dip, >95% reduction |
IEC 61000-4-11:2004, Criteria A |
|
Dip, 30% reduction |
IEC 61000-4-11:2004, Criteria A |
|
Interruptions, >95% reduction |
IEC 61000-4-11:2004, Criteria C* |
|
OVC III |
2000 m |
|
MODEL SELECTION TABLE |
||||||
|
Model Number |
Input Voltage |
Output Voltage |
Main Output (Current, Watt) |
Efficiency |
Capacitive Load (max.) |
|
|
Convection |
||||||
|
AIA65-S12 |
85̃～264 VAC |
12 VDC |
5.4 A |
65W |
90% |
3000 uF |
|
AIA65-S24 |
24 VDC |
2.7 A |
65W |
92% |
800 uF |
|
|
AIA65-S48 |
48 VDC |
1.35 A |
65W |
92% |
220 uF |
|
|
AIA65-S54 |
54 VDC |
1.2 A |
65W |
92% |
180 uF |
|
The AIA65 Series offers a wide input range of 85–264 VAC and delivers a consistent 65W convection-cooled output across multiple voltage configurations, making it highly versatile for different system requirements.
AIA65-S12: 12VDC / 5.4A, 90% efficiency, supports up to 3000µF capacitive load – ideal for dynamic load applications.
AIA65-S24: 24VDC / 2.7A, 92% efficiency, capacitive load up to 800µF – optimized for industrial and telecom systems.
AIA65-S48: 48VDC / 1.35A, 92% efficiency, capacitive load up to 220µF – perfect for high-voltage system integration.
AIA65-S54: 54VDC / 1.2A, 92% efficiency, capacitive load up to 180µF – designed for compact, high-efficiency designs.
With efficiency up to 92%, robust capacitive load support, and compact 1.2” x 2.5” footprint, the AIA65 Series provides engineers with the flexibility and performance needed for medical, industrial, test, and telecom applications.
The AIA65 Series delivers up to 65W of reliable power in a compact 1.2” x 2.5” open-frame design, convection-cooled for silent and efficient operation.
Its high efficiency of up to 94% and ultra-low no-load input power below 0.25W make it an energy-optimized solution for modern system designs.
Powered by advanced GaN technology, the AIA65 achieves higher power density and reduced heat generation, ensuring stable performance in space-constrained applications.
Designed for flexibility across diverse markets, it meets both ITE and Medical safety standards, including UL/IEC/EN 62368-1, EN55032 (Class B), and Class II compliance.
This makes the AIA65 Series an ideal choice for industrial control, test equipment, telecom systems, and medical devices, where compact size, efficiency, and safety are paramount.
