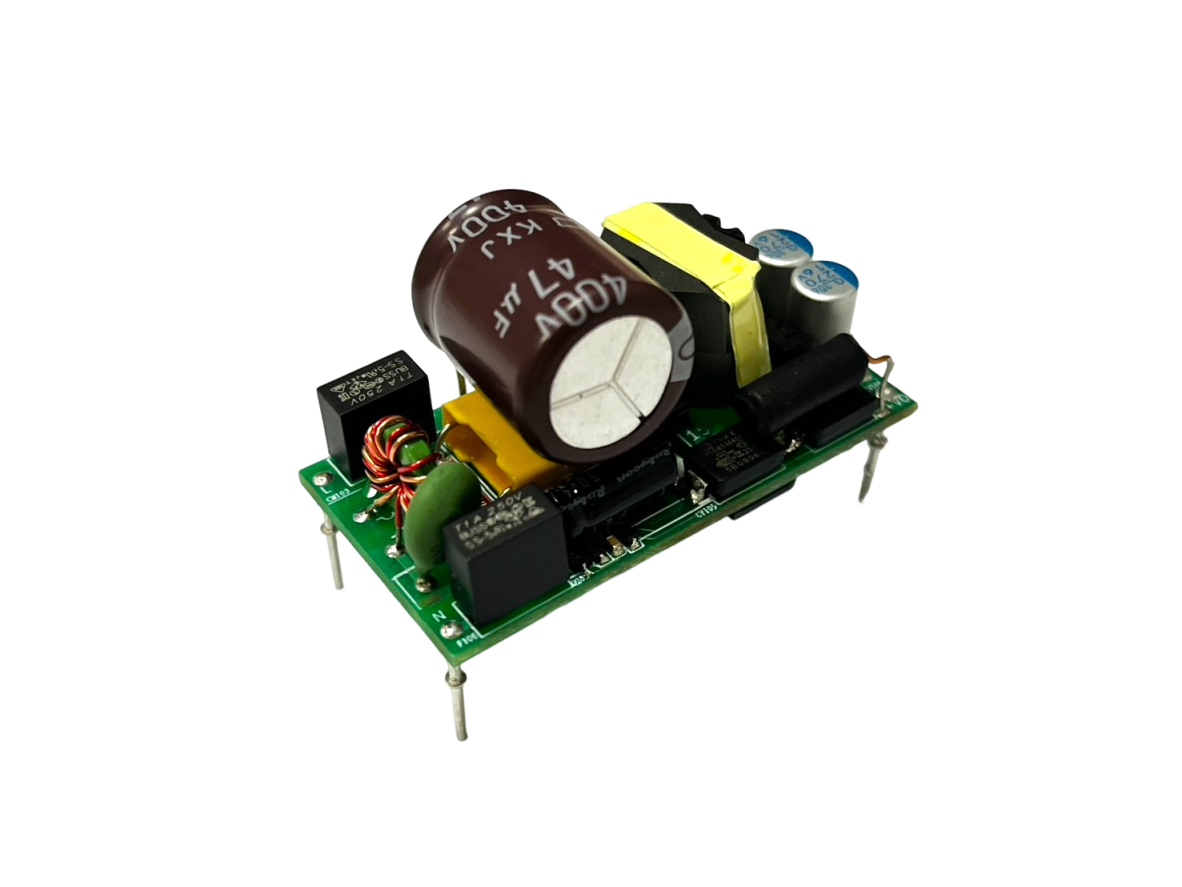

25W 2"x1" AC-DC Open Frame Power Supply
AIA25 Series
Features a 2"x1" (50.8 x 25.4 mm) compact size for space-constrained applications
Achieves high efficiency (up to 94%) with an ultra-low no-load input power of less than 0.25W, ensuring energy savings.
Designed for maximum versatility, supporting both ITE and Medical applications. Meets Class II standards and is compliant with EN 55032 (Class B) and UL/IEC/EN 62368-1 ITE safety approvals.
The AIA25 Series open-frame AC-DC power supply delivers up to 25W of reliable output in a compact 1 × 2 (25.4 x 50.8 mm) footprint, making it ideal for space-constrained designs in medical and ITE (Information Technology Equipment) applications.
With efficiency up to 94% and ultra-low no-load input power below 0.25W, the AIA25 Series supports energy-conscious systems and helps reduce standby power consumption.
Its convection-cooled design ensures silent operation and high reliability, even in thermally sensitive environments.
Designed to meet UL/IEC/EN 62368-1, EN55032 Class B EMI, and Class II compliance, the AIA25 Series meets global safety and EMC standards.
Ideal for industrial control, medical devices, test equipment, and telecom systems, this power supply offers a compact, efficient, and safe solution for modern electronics.
