DIB 20 Series | 20W 8:1 DC-DC Converter

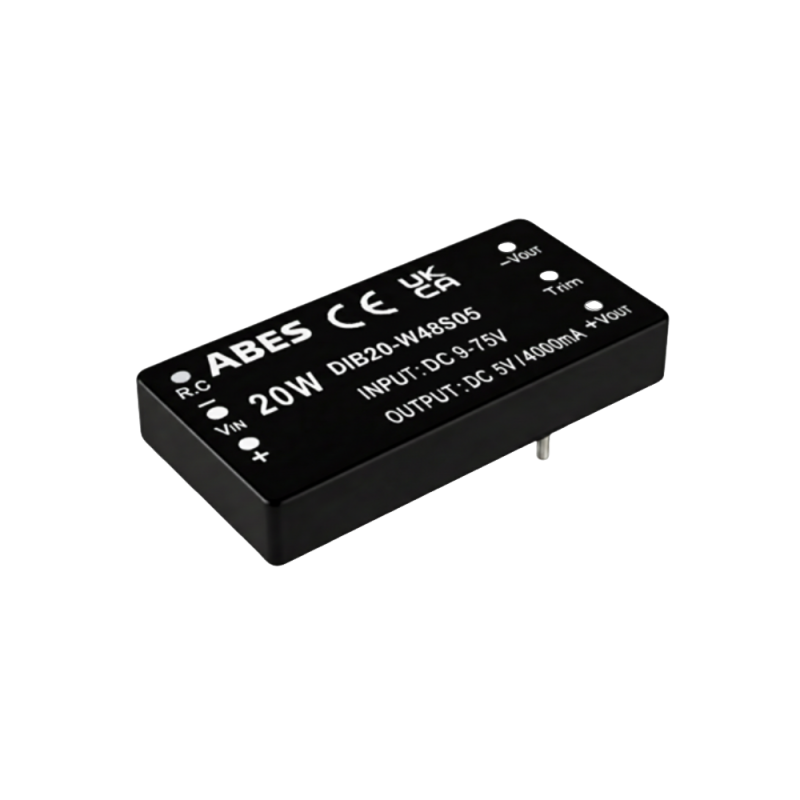

20W 8:1 Input 2"x1" Isolated DC-DC Converter

DIB20 Series

DIP 2“x 1” package with standard pinout

8:1 wide input range

High efficiency up to 88%

Built-in remote on/off control

Overload protection

Built-in trimming output

Short circuit protection

Overload protection & UVLO

3000Vdc I/O isolation

ABES technology co., ltd.

INPUT
Item		Conditions
Voltage Range		9~75V
Surge Voltage (100ms max.)		9-75 Vin models : 100Vdc
Filter		Pi network
Protection		Fuse recommended (see page 8)
Under Voltage Lockout		Start-up voltage：8.8 Vdc
		Shutdown voltage：7.5 Vdc
Remote Control		(see page 5)
OUTPUT
Item		Conditions
Voltage Accuracy		±2% max.
Rated Power		20W
Ripple & Noise¹		150mV Vp-p max.		24V：1% output Vp-p max.
Line Regulation²		±0.5%
Load Regulation³		±0.5% for other output		±1% for 3.3Vdc output
Cross Regulation		±5%		Dual : asymmetrical load 25%/100% FL
Switching Frequency		200KHz typ.(PWM)
PROTECTION
Item		Conditions
Short Circuit		Protection type : continuous, recovery
Overload		110%~230%
		Protection type : recovers automatically after fault condition is removed
Over Voltage		Clamp by TVS diodes
ENVIRONMENTAL
Item		Conditions
Cooling		Free-air convection
Working Temperature		-40~ +90°C (refer to“Derating Curve”)
Case Temperature		+110 °C max.
Working Humidity		5% ~ 95% RH non-condensing
Storage Temp., Humidity		-55 ~ +125°C,10 ~ 95% RH non-condensing
Temperature Coefficient		±0.05% / °C
Soldering Temperature		1.5mm from case of 3~5 sec./265°C(max.)
Vibration		10~500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
SAFETY & EMC
Item		Conditions
Isolation Voltage		I/P-O/P：3KVdc
Isolation Resistance		I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
Isolation Capacitance		1000pF typ.
EMC Emission		Parameter	Standard		Test Level / Note
		Conducted	EN55032(CISPR32)		N/A
		Radiated	EN55032(CISPR32)		Class A
EMC Immunity		Parameter	Standard		Test Level / Note
		ESD	BS IEC 61000-4-2		Air±8KV, Contact ±4KV
		Radiated Susceptibility	BS IEC 61000-4-3		3V/m
		EFT/Burst	BS IEC 61000-4-4		±0.5KV
		Surge	BS IEC 61000-4-5		Line-Line ±0.5KV
		Conducted	BS IEC 61000-4-6		3Vrms
		Magnetic field immunity	BS IEC 61000-4-8		1A/m
OTHERS
Item	Conditions
MTBF⁴	>600,000Hours
Weight	31.0g typ.
Dimension(LWH)	50.8mm25.4mm11.2mm
Case Material	Six-side shielded case
Note: 1 Ripple & noise are measured at 20MHz BW with 1uF ceramic capacitor connect to the output pins. 2 High line to low line. 3 Load regulation is for output load current change from 5% to 100%. 4 MIL-HDBK-217F @25 °C, Ground Benign. *All specifications are measured at Ta=25°C, humidity < 75%, nominal input voltage, and rated output load unless otherwise specified.

ABES technology co., ltd.

MODEL SELECTION TABLE
Model Number	Input				Output		Efficiency (%)	Capacitor Load (Max.)
	Voltage (VDC)		Current (mA)		Voltage (VDC)	Current (mA)
	Nominal	Range	No Load	Full Load	Voltage (VDC)	Current (mA)
DIB20-W24S3.3	24	9-75	10	809	3.3	0~5000	85	1000uF
DIB20-W24S05			10	958	5	0~4000	87	1000uF
DIB20-W24S12			20	947	12	0~1666	88	220uF
DIB20-W24S15			20	947	15	0~1333	88	220uF
DIB20-W24S24			20	947	24	0~833	88	100uF
DIB20-W24D12	24	9-75	20	947	±12	±0~833	88	±100uF
DIB20-W24D15	24	9-75	20	947	±15	±0~666	88	±100uF
Note: Efficiency and input current are measured at nominal input voltage and full load. Other input to output voltages may be available. Please contact factory. The minimum input voltage and starting voltage of ST and HST models are 1VDC higher than those of DIP package due to input reverse polarity protection function. Efficiencies for ST and HST models are decreased by 2.5% due to the input reverse polarity protection circuit.

The ABES DIB 20 Series is a high-performance 20W Isolated DC-DC Converter designed for versatility and reliability. Featuring an 8:1 ultra-wide input range, it effortlessly handles fluctuating power sources, making it a perfect fit for industrial and telecom applications.

Housed in a standard 2x1 DIP package, the DIB 20 offers advanced control features, including built-in remote on/off and output voltage trimming for precise system tuning. With 88% efficiency and 3000Vdc isolation, it provides a robust and cost-effective solution. Complete with OCP, UVLO, and short-circuit protection, the DIB 20 ensures your critical systems stay powered and protected.
