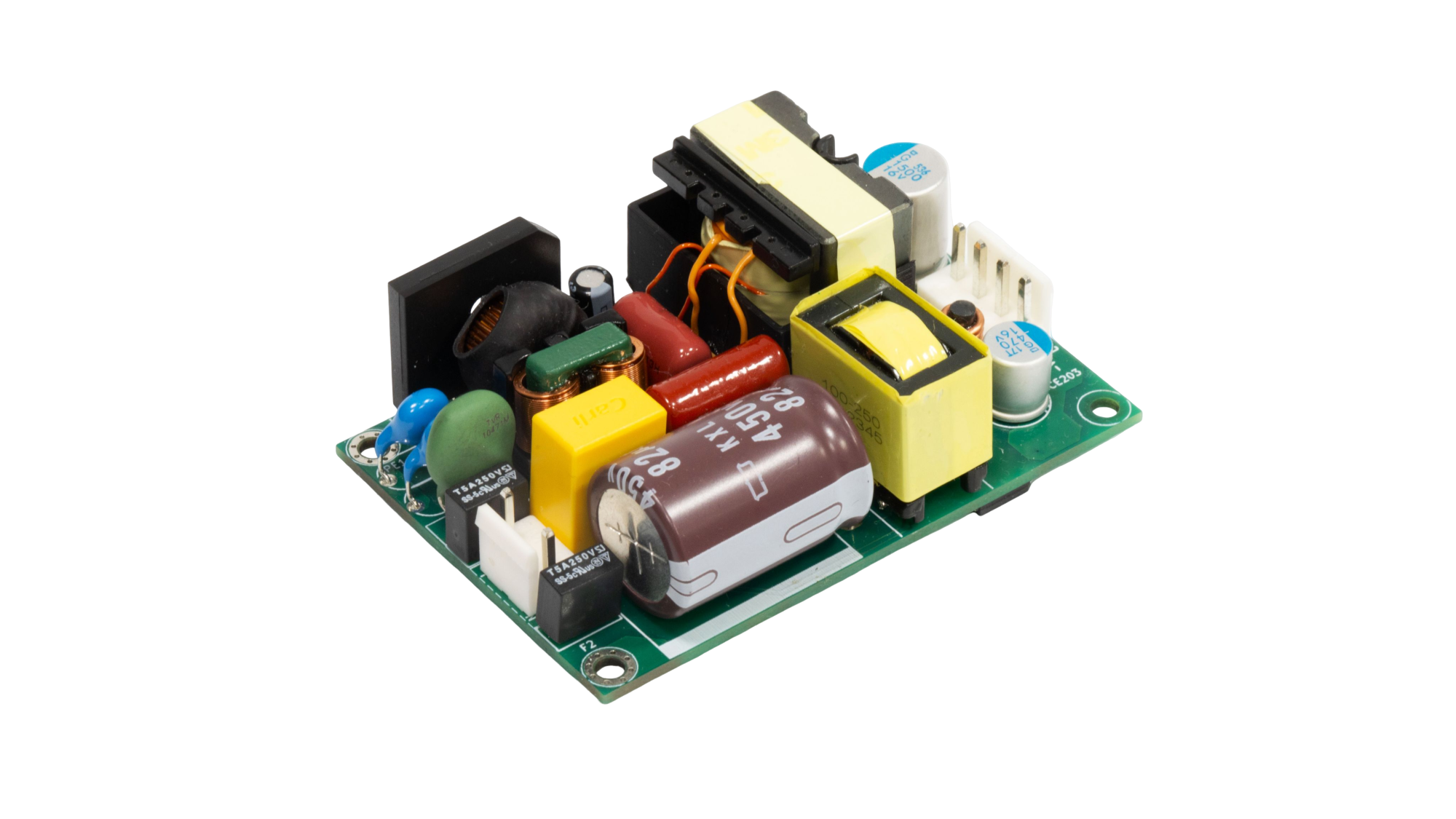

200W 2"x3" AC-DC Open Frame Power Supply
AIB200 Series
High-Density & Ultra-Compact: Features a space-saving 2" x 3" footprint delivering up to 200W force-cooled and 150W convection-cooled for quiet, fanless operation.
High Efficiency & Energy Saving: Achieves up to 94.5% efficiency with ultra-low no-load power consumption (< 0.3W) for precise, energy-efficient performance.
Flexible System Integration: Equipped with an auxiliary 12V fan output and supports both Class I and Class II installations for versatile system design.
Certified Safety & Compliance: Complies with UL/IEC/EN 62368-1 ITE safety standards and EN 55032 Class B EMI limits, ideal for Industry, Test, IPC, and Telecom applications.
|
INPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Input Voltage |
AC input DC input |
85 120 |
|
264 370 |
VAC VDC |
|
Input Current |
100VAC and Full Load |
|
|
4 |
A |
|
Input Frequency |
AC input |
47 |
|
63 |
Hz |
|
Inrush Current |
230VAC, cold start@25°C |
|
|
60 |
A |
|
No Load Input Power |
without Fan |
|
|
0.3 |
W |
|
Power Factor |
115VAC, full load |
|
0.99 |
|
% |
|
230VAC, full load |
|
0.96 |
|
% |
|
|
Leakage Current |
|
|
|
150 |
uA |
|
OUTPUT |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Output Voltage |
12/24/48 |
|
|
|
VDC |
|
Hold Up time |
At 115VAC to full load |
10 |
|
|
ms |
|
Line Regulation |
90VAC to 264VAC at full load |
±0.5 |
|
|
% |
|
Load Regulation |
No load to full load |
±1 |
|
|
% |
|
Transient Response |
Deviation with a 50%-75%-50% load change 1A/μs, recovering to <1% within 500μs |
3 |
|
|
% |
|
Ripple and Noise |
20 MHz bandwidth and 10 µF electrolytic capacitor in parallel with 0.1 µF ceramic capacitor. |
1 |
|
|
% |
|
Fan Power |
Offer output power of 12V/0.5A with output voltage accuracy ±15% |
||||
Note: All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
|
PROTECTION |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Over Voltage Protection |
Latch |
110 |
|
140 |
% |
|
Over Current Protection |
based on 300W, Hiccup Mode |
120 |
|
160 |
% |
|
Short Circuit Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
Over Temp Protection |
Hiccup Mode, auto recovery |
|
|
|
|
|
ENVIRONMENTAL |
|||||
|
Specification |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature |
With derating |
-40 |
|
85 |
°C |
|
Storage Temperature |
All Model |
-40 |
|
85 |
°C |
|
Altitude |
|
|
|
5000 |
m |
|
Humidity |
non-condensing |
5 |
|
95 |
%RH |
|
Specification |
Conditions |
|
|
Isolation Voltage |
Primary to Secondary |
4000 VAC |
|
Primary to Earth |
2000 VAC |
|
|
Secondary to Earth |
1500 VAC |
|
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG |
100M Ohms / 500VDC |
|
Isolation Level |
Primary to Secondary |
2 x MOPP |
|
Primary to Earth |
1 x MOPP |
|
|
Secondary to Earth |
1 x MOPP |
|
|
SAFETY |
||
|
Standard |
Design to meet IEC 62368-1 ; 60601-1 ; CLASS I & CLASS II |
|
|
EMC |
||
|
Characteristic |
Standard |
|
|
Conducted Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
|
Radiated Emissions |
EN55032:2012 +AC:2013 (CISPR 32:2012), Class B |
|
|
Harmonic Current emissions |
EN61000-3-2:2014, Class A |
|
|
Voltage fluctuations & flicker |
EN61000-3-3:2013 |
|
|
Electrostatic discharge |
IEC 61000-4-2:2008, Criteria A ; 15KV air ; 8KV contact |
|
|
Radiated Immunity |
IEC 61000-4-3:2010, Criteria A |
|
|
Electrical fast transient/burst |
IEC 61000-4-4:2012, Criteria A |
|
|
Surge |
IEC 61000-4-5:2014, Criteria A ; 4KV/Line-FG ; 2KV/Line-Line |
|
|
Conducted Immunity |
IEC 61000-4-6:2013 |
|
|
Magnetic Field |
IEC 61000-4-8:2009, Criteria A |
|
|
Dip & Interruptions |
IEC 61000-4-11:2004, Criteria B |
|
|
MODEL SELECTION TABLE |
||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Main Output (Current, Watt) |
Efficiency |
Capacitive Load (max.) |
|||
|
Convection |
Force-Cooled |
|||||||
|
AIB200-S12 |
85̃～264 VAC |
12 VDC |
12.5 A |
150W |
16.67A |
200W |
93% |
20000 uF |
|
AIB200-S24 |
24 VDC |
6.25 A |
150W |
8.33 A |
200W |
94% |
2400 uF |
|
|
AIB200-S48 |
48 VDC |
3.13 A |
150W |
4.17 A |
200W |
94.5% |
650 uF |
|
The ABES AIB200 series is a high-performance open-frame AC-DC power supply designed in a compact 2 x 3 footprint with high power density, making it the ideal solution for space-constrained installations
Featuring an outstanding efficiency of up to 94.5% and an ultra-low no-load power consumption of less than 0.3W, the AIB200 series minimizes standby energy loss and ensures superior energy savings
The series is certified to UL/IEC/EN 62368-1 ITE safety standards and complies with EN 55032 Class B EMI limits, making it well-suited for demanding applications across Industrial automation (Industry), Test & Measurement (Test), IPC, and Telecommunications (Telecom)
