30Watts(30瓦) 4:1輸入電壓 1x1英吋 隔離型DC-DC電源轉換器
DIA30 系列
Features a 4:1 wide input range
Achieves 91% efficiency with low no-load power consumption
Utilizes a 1”x1” industrial package with a six-sided shielding copper case
Includes remote on/off control and operates across a wide temperature range from -40°C to +105°C
Designed to meet UL/cUL 62368-1 safety standards and provides 3000VDC isolation
|

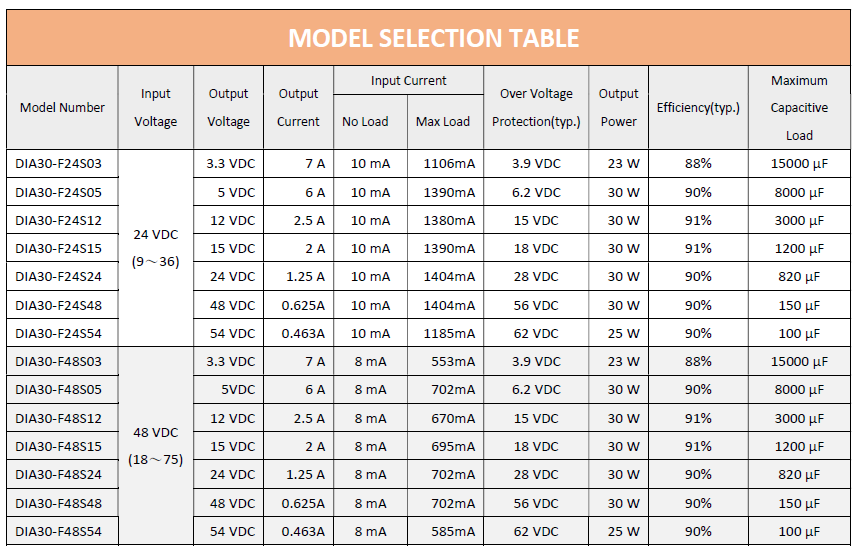

MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection (typ.) |
Output Power |
Efficiency (typ.) |
Maximum Capacitive Load |
|
|
No Load |
Max Load |
||||||||
|
DIA30-F24S03 |
24 VDC (9～36) |
3.3 VDC |
7 A |
10 mA |
1106mA |
3.9 VDC |
23 W |
88% |
15000 µF |
|
DIA30-F24S05 |
5 VDC |
6 A |
1390mA |
6.2 VDC |
30 W |
90% |
8000 µF |
||
|
DIA30-F24S12 |
12 VDC |
2.5 A |
1380mA |
15 VDC |
30 W |
91% |
3000 µF |
||
|
DIA30-F24S15 |
15 VDC |
2 A |
1390mA |
18 VDC |
30 W |
91% |
1200 µF |
||
|
DIA30-F24S24 |
24 VDC |
1.25 A |
1404mA |
28 VDC |
30 W |
90% |
820 µF |
||
|
DIA30-F24S48 |
48 VDC |
0.625A |
1404mA |
56 VDC |
30 W |
90% |
150 µF |
||
|
DIA30-F24S54 |
54 VDC |
0.463A |
1185mA |
62 VDC |
25 W |
90% |
100 µF |
||
|
DIA30-F48S03 |
48 VDC (18～75) |
3.3 VDC |
7 A |
8 mA |
553mA |
3.9 VDC |
23 W |
88% |
15000 µF |
|
DIA30-F48S05 |
5VDC |
6 A |
702mA |
6.2 VDC |
30 W |
90% |
8000 µF |
||
|
DIA30-F48S12 |
12 VDC |
2.5 A |
670mA |
15 VDC |
30 W |
91% |
3000 µF |
||
|
DIA30-F48S15 |
15 VDC |
2 A |
695mA |
18 VDC |
30 W |
91% |
1200 µF |
||
|
DIA30-F48S24 |
24 VDC |
1.25 A |
702mA |
28 VDC |
30 W |
90% |
820 µF |
||
|
DIA30-F48S48 |
48 VDC |
0.625A |
702mA |
56 VDC |
30 W |
90% |
150 µF |
||
|
DIA30-F48S54 |
54 VDC |
7 A |
585mA |
62 VDC |
25 W |
90% |
100 µF |
||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Input Voltage Range |
24VDC Nominal input models |
9 |
24 |
36 |
VDC |
|
48VDC Nominal input models |
18 |
48 |
75 |
||
|
Input Surge Voltage (100ms max.) |
24VDC Nominal input models |
|
|
50 |
|
|
48VDC Nominal input models |
|
|
100 |
||
|
Start-up Threshold Voltage |
24VDC Nominal input models |
8.2 |
8.5 |
8.8 |
|
|
48VDC Nominal input models |
16.3 |
16.5 |
16.7 |
||
|
Under Voltage Lockout(UVLO) |
24VDC Nominal input models |
7.4 |
7.7 |
8.0 |
|
|
48VDC Nominal input models |
15.3 |
15.5 |
15.7 |
||
|
Input Current |
See model selection table |
|
|||
|
Input filter |
Pi network filter |
|
|||
|
OUTPUT |
||||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
|
Output Voltage |
See Table |
|
|
|
|
|
|
Line Regulation |
Low line to high line at full load |
-1 |
|
+1 |
%Vo |
|
|
Load Regulation |
25-100% of lo |
-1 |
|
+1 |
%Vo |
|
|
Output Voltage Setting Accuracy |
max lo |
-1 |
|
+1 |
%Vo |
|
|
Output Voltage Trim |
|
-10 |
|
+10 |
%Vo |
|
|
Ripple & Noise (Note 1) |
Vin=48V, max lo. Measured by 20MHz bandwidth with 1Uf ceramic cap. and 10uF tantalum cap. (or ceramic cap.) Connected to the output pins. |
3.3VDC output |
|
|
75 |
mV |
|
5VDC output |
|
|
75 |
|||
|
12VDC output |
|
|
100 |
|||
|
15VDC output |
|
|
100 |
|||
|
24VDC output |
|
|
240 |
|||
|
48VDC output |
|
|
480 |
|||
|
54VDC output |
|
|
540 |
|||
|
Output Power |
See model selection table |
|
|
|
|
|
|
Output Current |
See model selection table |
|
|
|
|
|
|
Minimum Load |
No minimum load required |
|
|
|
|
|
|
Transient Recovery Time |
50% - 75% of lo, di/dt=0.1A/us |
|
300 |
500 |
us |
|
|
Transient Recovery Deviation |
|
±3 |
±5 |
%Vo |
||
|
PROTECTION |
|||||
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Output Over Voltage Protection |
Zener diode clamp |
See model selection table |
|||
|
Over Current Protection |
% of Io rated; Hiccup mode |
130 |
|
180 |
%Io |
|
Thermal Protection |
|
|
110 |
|
°C |
|
Short Circuit Protection |
Short +Vo to VO |
Auto recovery |
|||
|
GENERAL |
|||||
|
Conditions |
Min |
Typ |
Max |
Unit |
|
|
Efficiency |
|
See model selection table |
|||
|
Switching Frequency |
|
|
280 |
|
KHz |
|
Isolation Voltage |
Input to Output, 60 Sec |
|
|
3000 |
VDC |
|
Isolation Resistance |
500VDC |
100 |
|
|
M Ohm |
|
Isolation Capacitance |
|
|
|
1 |
nF |
|
Maximum Capacitive Load |
|
See model selection table |
|||
|
REMOTE ON/OFF |
|||||||
|
Item |
Conditions |
||||||
|
Positive Logic |
Referred to - Vin pin |
Converter On |
open circuit or 2.5 ~ 12VDC |
||||
|
Converter Off |
Short circuit or 0 ~ 0.8VDC |
||||||
|
Negative Logic |
Converter On |
Short circuit or 0 ~ 0.8VDC |
|||||
|
Converter Off |
open circuit or 2.5 ~ 12VDC |
||||||
|
Control Input Current |
On |
Vctrl = 5.0V |
|
0.5 |
|
mA |
|
|
Off |
Vctrl = 0V |
|
-0.5 |
|
|||
|
Stand-by Input idle Current |
Nominal Vin |
|
6.5 |
|
|||
|
PHYSICAL SPECIFICATIONS |
|
|
Weight |
18g (0.63oz) |
|
Dimension (L x W x H) |
1.0 x 1.0 x 0.43 inches (25.4 x 25.4 x 10.9 mm) |
|
Case Material |
Copper |
|
Base Material |
FR4 PCB (Flammability to UL 94V-0 rated) |
|
Pin Material |
Copper alloy |
|
Item |
Conditions |
Min |
Typ |
Max |
Unit |
|
Operating Temperature (Without Heatsink) |
With derating
|
-40 |
|
105 |
°C |
|
Case Temperature |
|
|
|
105 |
°C |
|
Storage Temperature |
|
-55 |
|
125 |
°C |
|
Humidity (non-condensing) |
|
|
|
95 |
% RH |
|
RFI |
|
Six-sided shielding, metal case |
|||
|
Cooling |
Natural convection is about 20LFM but is not equal to still air (0LFM) |
Natural convection |
|||
|
Lead Temperature |
1.5mm from case for 10 seconds |
|
|
260 |
°C |
|
SAFETY & EMC |
|||
|
Safety Approvals |
Meet UL/cUL 62368-1 |
||
|
EMI (external circuit required ) |
EN55032, FCC part 15 Class A |
||
|
EMS (external circuit required |
ESD |
EN61000-4-2 Air:±8KV ; Contact:±6KV |
Criteria A |
|
Radiated Immunity |
EN61000-4-3 10V/m |
||
|
Fast Transient |
EN61000-4-4 ±2KV |
||
|
Surge |
EN61000-4-5 ±1KV |
||
|
Conducted Immunity |
EN61000-4-6 10V/m |
||
|
MODEL SELECTION TABLE |
|||||||||
|
Model Number |
Input Voltage |
Output Voltage |
Output Current |
Input Current |
Over Voltage Protection (typ.) |
Output Power |
Efficiency (typ.) |
Maximum Capacitive Load |
|
|
No Load |
Max Load |
||||||||
|
DIA30-F24S03 |
24 VDC (9～36) |
3.3 VDC |
7 A |
10 mA |
1106mA |
3.9 VDC |
23 W |
88% |
15000 µF |
|
DIA30-F24S05 |
5 VDC |
6 A |
1390mA |
6.2 VDC |
30 W |
90% |
8000 µF |
||
|
DIA30-F24S12 |
12 VDC |
2.5 A |
1380mA |
15 VDC |
30 W |
91% |
3000 µF |
||
|
DIA30-F24S15 |
15 VDC |
2 A |
1390mA |
18 VDC |
30 W |
91% |
1200 µF |
||
|
DIA30-F24S24 |
24 VDC |
1.25 A |
1404mA |
28 VDC |
30 W |
90% |
820 µF |
||
|
DIA30-F24S48 |
48 VDC |
0.625A |
1404mA |
56 VDC |
30 W |
90% |
150 µF |
||
|
DIA30-F24S54 |
54 VDC |
0.463A |
1185mA |
62 VDC |
25 W |
90% |
100 µF |
||
|
DIA30-F48S03 |
48 VDC (18～75) |
3.3 VDC |
7 A |
8 mA |
553mA |
3.9 VDC |
23 W |
88% |
15000 µF |
|
DIA30-F48S05 |
5VDC |
6 A |
702mA |
6.2 VDC |
30 W |
90% |
8000 µF |
||
|
DIA30-F48S12 |
12 VDC |
2.5 A |
670mA |
15 VDC |
30 W |
91% |
3000 µF |
||
|
DIA30-F48S15 |
15 VDC |
2 A |
695mA |
18 VDC |
30 W |
91% |
1200 µF |
||
|
DIA30-F48S24 |
24 VDC |
1.25 A |
702mA |
28 VDC |
30 W |
90% |
820 µF |
||
|
DIA30-F48S48 |
48 VDC |
0.625A |
702mA |
56 VDC |
30 W |
90% |
150 µF |
||
|
DIA30-F48S54 |
54 VDC |
7 A |
585mA |
62 VDC |
25 W |
90% |
100 µF |
||
The DIA30 Series is a versatile DC-DC converter family designed for industrial applications, automation systems, and embedded electronics. With wide input voltage ranges and high efficiency, these converters deliver stable power in a compact footprint.
Key Features:
Wide Input Voltage Range: Supports 24 VDC (9–36 V) and 48 VDC (18–75 V) inputs for flexible system integration.
High Efficiency: Up to 91% efficiency minimizes energy loss and reduces heat generation.
Robust Overvoltage Protection: Protects your equipment with input-to-output isolation and overvoltage protection up to 62 VDC.Low No-Load Power Consumption: Consumes as little as 8–10 mA in standby mode, saving energy.
Compact & Versatile: Suitable for space-constrained installations without compromising performance.
Stable Output: Supports capacitive loads up to 15,000 μF, ensuring smooth operation for demanding applications.
Applications:Perfect for industrial control systems, embedded devices, telecommunications, and any application requiring reliable, efficient DC-DC conversion in a small form factor.
DIA30 Series | 30W Compact DC-DC Converter with 4:1 Input Range and High Isolation for Industrial Applications
The DIA30 Series DC-DC converter from ABES delivers up to 30W of reliable power in a compact 1" × 1" industry-standard package, ideal for space-constrained industrial and embedded systems.
Featuring a 4:1 wide input voltage range, efficiency up to 91%, and 3000VDC isolation, the DIA30 ensures safe, stable, and energy-efficient power conversion in demanding environments.
Its six-sided shielding copper case provides excellent thermal performance, EMI suppression, and low radiated noise, supporting uninterrupted operation for sensitive electronics.
Additional features include:
Ultra-low no-load power consumption for extended battery life
Remote on/off control for flexible system design
Wide operating temperature range from −40°C to +105°C
Certified to UL/cUL 62368-1 safety standards, the DIA30 Series is a robust and versatile solution for industrial automation, test equipment, telecommunications, and embedded applications.
