ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9~75V
|
|
|
Surge Voltage (100ms
max.)
|
9-75
Vin models : 100Vdc
|
|
|
Filter
|
Pi
network
|
|
|
Protection
|
Fuse
recommended (see page 8)
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：7.5 Vdc
|
|
|
Remote
Control
|
(see
page 5)
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
20W
|
|
|
Ripple
& Noise1
|
150mV
Vp-p max.
|
24V：1% output Vp-p max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5% for other
output
|
±1% for 3.3Vdc output
|
|
|
Cross
Regulation
|
±5%
|
Dual : asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
200KHz typ.(PWM)
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short Circuit
|
Protection type : continuous, recovery
|
|
|
Overload
|
110%~230%
|
|
|
Protection type : recovers automatically after fault
condition is removed
|
|
|
Over Voltage
|
Clamp by TVS diodes
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air convection
|
|
|
Working Temperature
|
-40~ +90°C (refer to“Derating
Curve”)
|
|
|
Case Temperature
|
+110 °C max.
|
|
|
Working Humidity
|
5% ~ 95% RH non-condensing
|
|
|
Storage Temp., Humidity
|
-55 ~ +125°C,10 ~ 95% RH non-condensing
|
|
|
Temperature Coefficient
|
±0.05% / °C
|
|
|
Soldering Temperature
|
1.5mm from
case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：3KVdc
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
1000pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Air±8KV, Contact ±4KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>600,000Hours
|
|
Weight
|
31.0g typ.
|
|
Dimension(L*W*H)
|
50.8mm*25.4mm*11.2mm
|
|
Case Material
|
Six-side shielded case
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 5% to
100%.
4 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIB20-W24S3.3
|
24
|
9-75
|
10
|
809
|
3.3
|
0~5000
|
85
|
1000uF
|
|
DIB20-W24S05
|
10
|
958
|
5
|
0~4000
|
87
|
1000uF
|
|
DIB20-W24S12
|
20
|
947
|
12
|
0~1666
|
88
|
220uF
|
|
DIB20-W24S15
|
20
|
947
|
15
|
0~1333
|
88
|
220uF
|
|
DIB20-W24S24
|
20
|
947
|
24
|
0~833
|
88
|
100uF
|
|
DIB20-W24D12
|
24
|
9-75
|
20
|
947
|
±12
|
±0~833
|
88
|
±100uF
|
|
DIB20-W24D15
|
20
|
947
|
±15
|
±0~666
|
88
|
±100uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
The minimum input
voltage and starting voltage of ST and HST models are 1VDC higher than those
of DIP package due to input reverse polarity protection function.
Efficiencies for ST
and HST models are decreased by 2.5% due to the input reverse polarity
protection circuit.
|

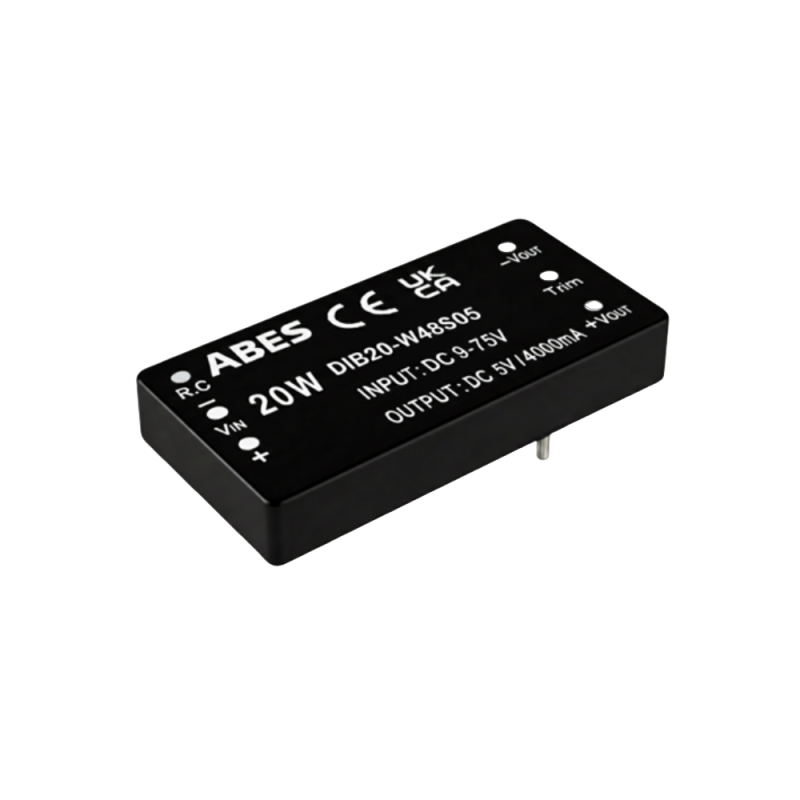

ABES DIB 20 系列 是一款專為高穩定性需求設計的 20W 隔離式 DC-DC 電源轉換器。採用標準 2"x1" 封裝 與引腳設計，具備強大的 8:1 超寬輸入範圍，能輕鬆應對各種不穩定的電壓環境。
本系列集成了多項進階功能，包括 遠端開關控制 (Remote On/Off) 與 輸出電壓微調 (Trim)，讓工程師能進行精確的系統電源管理。憑藉高達 88% 的轉換效率 與 3000Vdc 高隔離電壓，DIB 20 在提供強大動力的同時，也透過內建的 過載保護 (OCP)、欠壓鎖定 (UVLO) 及 短路保護 確保系統安全。對於追求 高性價比 與工業級可靠性的設計者而言，DIB 20 是最理想的選擇。
