ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9~75V
|
|
|
Surge Voltage (100ms
max.)
|
100Vdc
|
|
|
Filter
|
Pi
network
|
|
|
Remote
Control
|
See
page 5
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：8 Vdc
|
|
|
Protection
|
Fuse
recommended (see page 8)
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
15W
|
|
|
Ripple
& Noise1
|
3.3~5V：100mV Vp-p max.
|
12~24V：1% Output Vp-p max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5%
|
±1% for 3.3Vdc
|
|
|
Cross
Regulation
|
±5%
|
Dual：asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
200KHz typ.( PWM )
|
|
|
External
Trim ADJ. Range
|
±10%(typ.)
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short Circuit
|
Protection type: continuous, recovery
|
|
|
Overload
|
110%~200%
|
|
|
Protection type: recovers automatically after fault
condition is removed
|
|
|
Over Voltage
|
Clamp by TVS diode
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air convection
|
|
|
Working Temperature
|
-40~ +85°C (refer to“Derating
Curve”)
|
|
|
Case Temperature
|
+110 °C max.
|
|
|
Working Humidity
|
5% ~ 95% RH non-condensing
|
|
|
Storage Temp., Humidity
|
-55 ~ +125°C, 10 ~ 95% RH non-condensing
|
|
|
Temperature Coefficient
|
±0.05% / °C
|
|
|
Soldering Temperature
|
1.5mm from
case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：3KVdc
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
1000pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Contact ±4KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>570,000Hours
|
|
Weight
|
18.0g typ.
|
|
Dimension(L*W*H)
|
25.4mm*25.4mm*10.2mm
|
|
Case Material
|
Five-side shielded case
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 5% to
100%.
4 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIA15-W24S3.3
|
24
|
9-75
|
5
|
485
|
3.3
|
0~3000
|
85
|
680uF
|
|
DIA15-W24S05
|
6
|
710
|
5
|
0~3000
|
88
|
680uF
|
|
DIA15-W24S12
|
7
|
718
|
12
|
0~1250
|
87
|
330uF
|
|
DIA15-W24S15
|
8
|
710
|
15
|
0~1000
|
88
|
220uF
|
|
DIA15-W24S24
|
13
|
718
|
24
|
0~625
|
87
|
100uF
|
|
DIA15-W24D05
|
24
|
9-75
|
7
|
744
|
±5
|
±0~1500
|
84
|
±330uF
|
|
DIA15-W24D12
|
13
|
718
|
±12
|
±0~625
|
87
|
±150uF
|
|
DIA15-W24D15
|
16
|
710
|
±15
|
±0~500
|
88
|
±100uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
|

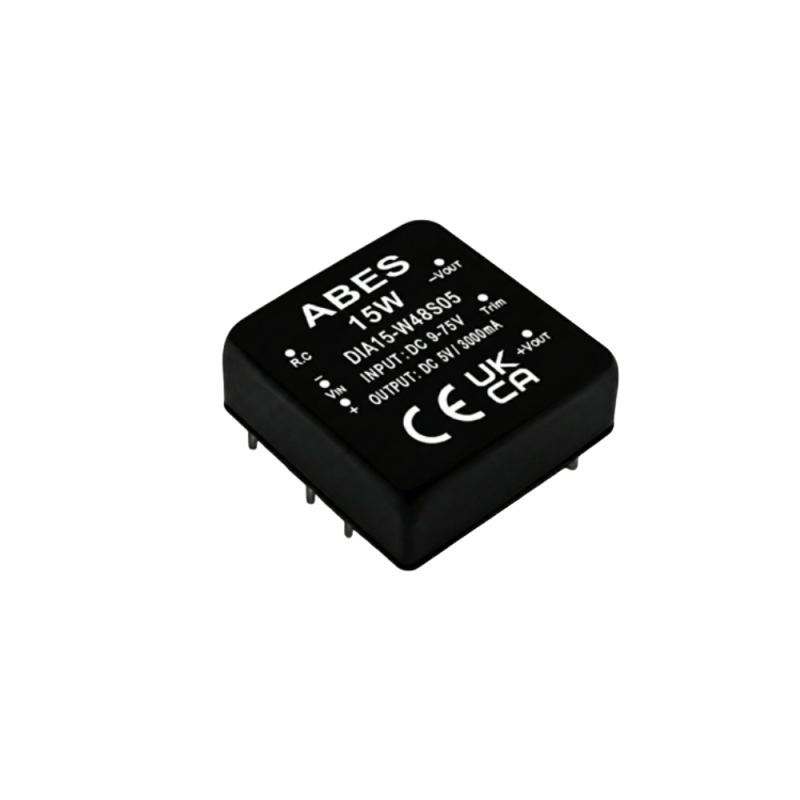

ABES DIA 15 系列 是一款專為節省空間設計的 15W 隔離式 DC-DC 轉換器。在精巧的 1"x1" DIP 標準封裝 內，具備強大的 8:1 超寬電壓輸入 與高達 88% 的轉換效率，是空間受限應用的理想電源解決方案。
該系列強調「即插即用」，無需外接濾波元件 且 無須最小負載，大幅簡化 PCB 設計。透過內建的 輕載節能技術、3000Vdc 高隔離電壓 以及 欠壓鎖定 (UVLO) 與過載保護，DIA 15 在提供 高性價比 的同時，更確保了工業級的穩定性與安全性。
