ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9-75V
|
|
|
Surge Voltage(100ms
max.)
|
100Vdc
|
|
|
Filter
|
Pi
network
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：8 Vdc
|
|
|
Remote
Control
|
See
page 5
|
|
|
Protection
|
Fuse
recommended (see page 7)
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
9W
|
|
|
Ripple
& Noise1
|
3.3~9V：100mV Vp-p max.
|
12~24V：1% output Vp-p max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5%
|
±1% for 3.3Vdc output
|
|
|
Cross
Regulation
|
±5%
|
Dual：asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
300KHz typ.( PWM )
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short Circuit
|
Protection type : continuous, recovery
|
|
|
Overload
|
110%~230%
|
|
|
Protection type : recovers automatically after fault
condition is removed
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air convection
|
|
|
Working Temperature
|
-40~ +75°C (refer to“Derating Curve”)
|
|
|
Case Temperature
|
+115 °C max.
|
|
|
Working Humidity
|
5% ~ 95% RH non-condensing
|
|
|
Storage Temp., Humidity
|
-55 ~ +125°C, 10 ~ 95% RH non-condensing
|
|
|
Temperature Coefficient
|
±0.05%
/ °C
|
|
|
Soldering Temperature
|
1.5mm from case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60 min. each along X,
Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：1500Vdc
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
80pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A (with external filter)
|
|
|
EMC Immunity
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Air±8KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>980,000Hours
|
|
Weight
|
5.0g typ.
|
|
Dimension(L*W*H)
|
24.0mm*9.6mm*11.2mm
|
|
Case Material
|
Non-conductive plastic
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 0% to
100%.
4 The temperature measuring point is the center of the front
side.
5 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE: 8:1 1W
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIF09-W24S3.3
|
24
|
9-75
|
10
|
339
|
3.3
|
0~2000
|
81
|
680uF
|
|
DIF09-W24S05
|
10
|
401
|
5
|
0~1600
|
83
|
680uF
|
|
DIF09-W24S09
|
10
|
436
|
9
|
0~1000
|
86
|
470uF
|
|
DIF09-W24S12
|
10
|
431
|
12
|
0~750
|
87
|
330uF
|
|
DIF09-W24S15
|
10
|
431
|
15
|
0~600
|
87
|
220uF
|
|
DIF09-W24S24
|
10
|
431
|
24
|
0~375
|
87
|
100uF
|
|
DIF09-W24D05
|
24
|
9-75
|
10
|
397
|
±5
|
±0~800
|
84
|
±330uF
|
|
DIF09-W24D12
|
10
|
431
|
±12
|
±0~375
|
87
|
±150uF
|
|
DIF09-W24D15
|
10
|
431
|
±15
|
±0~300
|
87
|
±100uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
|

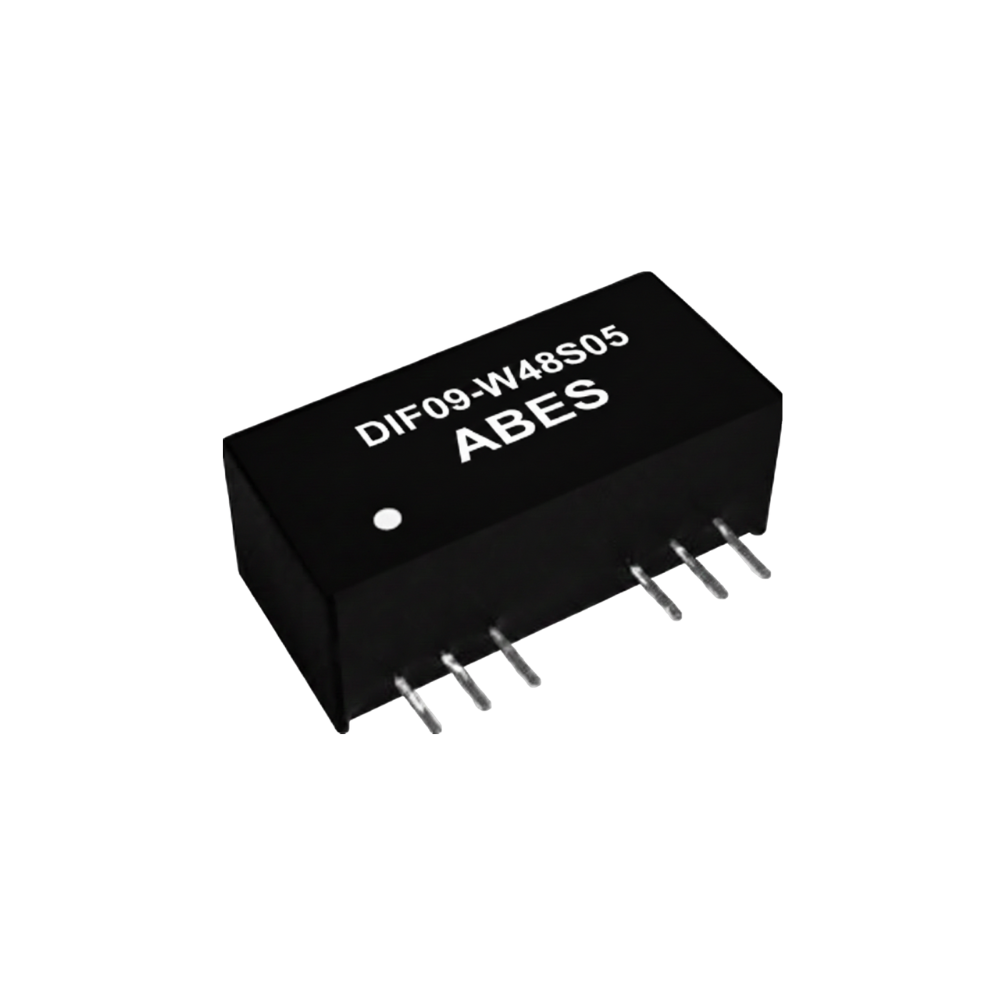

ABES DIF09 系列 是一款專為高密度佈局設計的 9W 隔離式 DC-DC 電源轉換器。採用精巧的 SIP 單列直插式封裝，能大幅縮減 PCB 佔用空間，並提供卓越的 8:1 超寬輸入電壓範圍，輕鬆應對各種不穩定的電力環境。
DIF09 不僅擁有高達 87% 的轉換效率 與 1500Vdc 高隔離電壓，更支援 無須最小負載 運作。結合內建的 過載保護與欠壓鎖定 (UVLO) 功能，在提供 高性價比 的同時，更確保了工業與通訊系統的長期穩定性，是狹小空間內最可靠的電源首選。
