ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9~75V
|
|
|
Surge Voltage (100ms
max.)
|
9-75
Vin models: 100 Vdc
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：8 Vdc
|
|
|
Filter
|
Pi
Network
|
|
|
Remote
Control
|
see
page 5
|
|
|
Protection
|
Fuse
recommended (see page 7 )
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
12W
|
|
|
Ripple
& Noise1
|
100mVp-p
max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5% for other
output
|
±1% for 3.3Vdc output
|
|
Cross
Regulation
|
±5%
|
Dual：asymmetrical load 25%/100% FL
|
|
|
Switching
Frequency
|
300Khz typ.(PWM )
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short Circuit
|
Protection type : continuous, recovery
|
|
|
Overload
|
110%~230%
|
|
|
Protection type : recovers automatically after fault
condition is removed
|
|
|
Over Voltage
|
Clamp by TVS diode
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air convection
|
|
|
Working Temperature
|
-40~ +85°C (refer to“Derating Curve”)
|
|
|
Case Temperature
|
+110 °C max.
|
|
|
Working Humidity
|
5% ~ 95% RH non-condensing
|
|
|
Storage Temp., Humidity
|
-55 ~ +125°C, 10 ~ 95% RH non-condensing
|
|
|
Temperature Coefficient
|
±0.05% / °C
|
|
|
Soldering Temperature
|
1.5mm from
case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：3KVdc for 60 seconds
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
1000pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Contact ±4KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
|
Item
|
Conditions
|
|
|
MTBF4
|
>860,000Hours
|
|
|
Weight
|
17.5g typ.
|
|
|
Dimension(L*W*H)
|
31.8mm*20.3mm*12.2mm
|
|
|
Case Material
|
Five-side shielded case
|
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 Load regulation is for output load current change from 0% to
100%.
4 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE:
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIG12-W24S3.3M
|
24
|
9-75
|
10
|
497
|
3.3
|
0~3000
|
83
|
1000uF
|
|
DIG12-W24S05M
|
10
|
581
|
5
|
0~2400
|
86
|
680uF
|
|
DIG12-W24S09M
|
10
|
588
|
9
|
0~1333
|
85
|
680uF
|
|
DIG12-W24S12M
|
10
|
575
|
12
|
0~1000
|
87
|
470uF
|
|
DIG12-W24S15M
|
10
|
575
|
15
|
0~800
|
87
|
220uF
|
|
DIG12-W24D05M
|
24
|
9-75
|
10
|
595
|
±5
|
±0~1200
|
84
|
±470uF
|
|
DIG12-W24D12M
|
10
|
568
|
±12
|
±0~500
|
88
|
±220uF
|
|
DIG12-W24D15M
|
10
|
581
|
±15
|
±0~400
|
86
|
±220uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
|

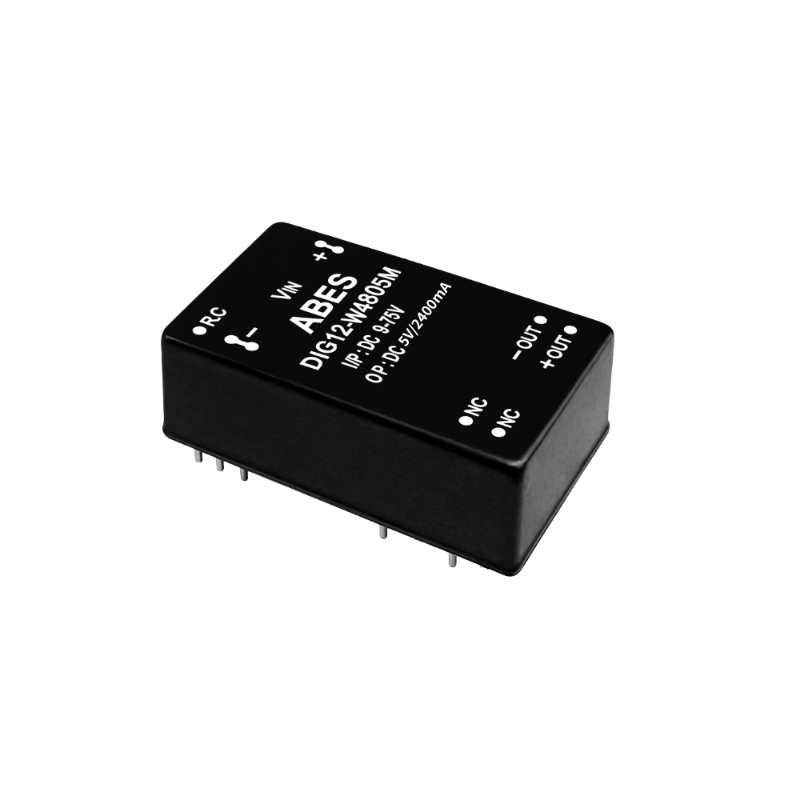

ABES DIG12 系列 是一款專為高效能要求設計的 12W 隔離式 DC-DC 電源轉換器。採用標準 DIP-24 封裝，具備強大的 8:1 超寬輸入範圍，能輕鬆應對大幅波動的電壓環境。此系列提供 88% 的轉換效率 與 3000Vdc 高隔離電壓，並內建濾波電路與輕載節能設計，是工業自動化及數據通訊系統中穩定供電的最佳解決方案。
