ABES technology co., ltd.
|
INPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage Range
|
9~75V
|
|
|
Surge Voltage(100ms
max.)
|
9-75
Vin models: 100Vdc
|
|
|
Filter
|
Pi
network
|
|
|
Protection
|
Fuse
recommended (see page 6 )
|
|
|
Under Voltage Lockout
|
Start-up
voltage：8.8 Vdc
|
|
|
Shutdown
voltage：8 Vdc
|
|
|
Remote
Control
|
(see
page 4)
|
|
|
OUTPUT
|
|
|
Item
|
Conditions
|
|
|
Voltage
Accuracy
|
±2% max.
|
|
|
Rated
Power
|
15W
|
|
|
Ripple
& Noise1
|
150mVp-p
max.
|
|
|
Line
Regulation2
|
±0.5%
|
|
|
Load
Regulation3
|
±0.5% for other
output
|
±1% for 3.3Vdc output
|
|
|
Cross
Regulation
|
±5%
|
Dual : asymmetrical
load 25%/100% FL
|
|
|
Switching
Frequency
|
300KHz typ.(PWM)
|
|
|
PROTECTION
|
|
|
Item
|
Conditions
|
|
|
Short
Circuit
|
Protection
type: continuous, recovery
|
|
|
Overload
|
110%~230%
|
|
|
Protection
type: recovers automatically after fault condition is removed
|
|
|
Over
Voltage
|
Clamp
by TVS diodes
|
|
|
ENVIRONMENTAL
|
|
|
Item
|
Conditions
|
|
|
Cooling
|
Free-air
convection
|
|
|
Working
Temperature
|
-40~
+85°C (refer to“Derating Curve”)
|
|
|
Case
Temperature
|
+110 °C max.
|
|
|
Working
Humidity
|
5%
~ 95% RH non-condensing
|
|
|
Storage
Temp., Humidity
|
-55
~ +125°C,10 ~ 95% RH non-condensing
|
|
|
Temperature
Coefficient
|
±0.05%
/ °C
|
|
|
Soldering
Temperature
|
1.5mm from case of 3~5 sec./265°C(max.)
|
|
|
Vibration
|
10~500Hz,
2G 10min./1cycle, period for 60 min. each along X, Y, Z axes
|
|
|
SAFETY & EMC
|
|
|
Item
|
Conditions
|
|
|
Isolation Voltage
|
I/P-O/P：3KVdc for 60 seconds
|
|
|
Isolation Resistance
|
I/P-O/P : 1000M Ohms / 500VDC / 25°C / 70% RH
|
|
|
Isolation Capacitance
|
1000pF typ.
|
|
|
EMC Emission
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
Conducted
|
EN55032(CISPR32)
|
N/A
|
|
|
Radiated
|
EN55032(CISPR32)
|
Class A
|
|
|
EMC Immunity
EMC Immunity
|
Parameter
|
Standard
|
Test Level / Note
|
|
|
ESD
|
BS IEC 61000-4-2
|
Contact ±4KV
|
|
|
Radiated Susceptibility
|
BS IEC 61000-4-3
|
3V/m
|
|
|
EFT/Burst
|
BS IEC 61000-4-4
|
±0.5KV
|
|
|
Surge
|
BS IEC 61000-4-5
|
Line-Line ±0.5KV
|
|
|
Conducted
|
BS IEC 61000-4-6
|
3Vrms
|
|
|
Magnetic field immunity
|
BS IEC 61000-4-8
|
1A/m
|
|
OTHERS
|
|
Item
|
Conditions
|
|
MTBF4
|
>860,000Hours
|
|
Weight
|
29.0g typ.
|
|
Dimension(L*W*H)
|
50.8mm*25.4mm*11.2mm
|
|
Case Material
|
Six-side shielded case
|
|
Note:
1 Ripple & noise are measured at 20MHz BW with 1uF ceramic
capacitor connect to the output pins.
2 High line to low line.
3 MIL-HDBK-217F @25 °C, Ground Benign.
*All specifications are measured at Ta=25°C, humidity <
75%, nominal input voltage, and rated output load unless otherwise specified.
|
|
|
|
|
|
|
|
ABES technology co., ltd.
|
MODEL
SELECTION TABLE: 8:1 1W
|
|
Model Number
|
Input
|
Output
|
Efficiency (%)
|
Capacitor Load
(Max.)
|
|
Voltage (VDC)
|
Current (mA)
|
Voltage (VDC)
|
Current
(mA)
|
|
Nominal
|
Range
|
No Load
|
Full Load
|
|
DIB15-W24S03.3(R)
|
24
|
9-75
|
10
|
679
|
3.3
|
0~4000
|
81
|
680uF
|
|
DIB15-W24S05(R)
|
10
|
744
|
5
|
0~3000
|
84
|
680uF
|
|
DIB15-W24S09(R)
|
10
|
727
|
9
|
0~1666
|
86
|
470uF
|
|
DIB15-W24S12(R)
|
15
|
727
|
12
|
0~1250
|
86
|
330uF
|
|
DIB15-W24S15(R)
|
15
|
727
|
15
|
0~1000
|
86
|
220uF
|
|
DIB15-W24S24(R)
|
15
|
727
|
24
|
0~625
|
86
|
100uF
|
|
DIB15-W24D05(R)
|
24
|
9-75
|
10
|
744
|
±5
|
±0~1500
|
84
|
±330uF
|
|
DIB15-W24D12(R)
|
15
|
727
|
±12
|
±0~625
|
86
|
±150uF
|
|
DIB15-W24D15(R)
|
15
|
727
|
±15
|
±0~500
|
86
|
±100uF
|
|
Note: Efficiency
and input current are measured at nominal input voltage and full load.
Other input to
output voltages may be available. Please contact factory.
|

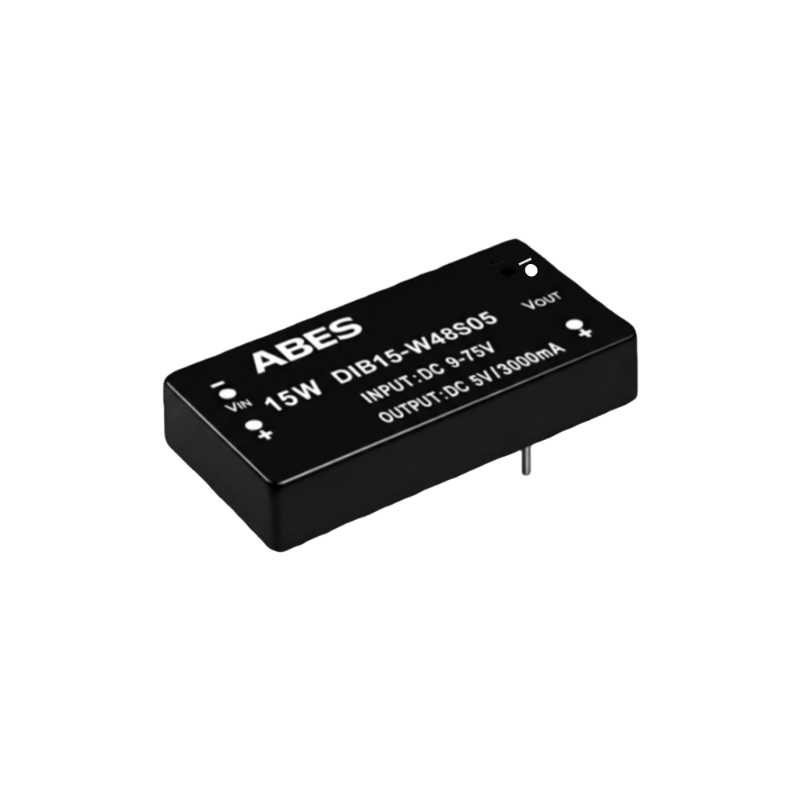

ABES DIB15 系列 是一款高效能的 15W 隔離式 DC-DC 電源轉換器，專為工業自動化與分散式電源系統設計。採用標準 2"x1" 封裝，具備卓越的 8:1 超寬輸入範圍，能有效簡化多元電壓系統的設計流程。此系列提供 86% 的轉換效率 與 3000Vdc 強大隔離，並整合了 遠端 On/Off 控制 與過載、短路保護功能，確保設備在嚴苛工業環境中依然能穩定運作。
